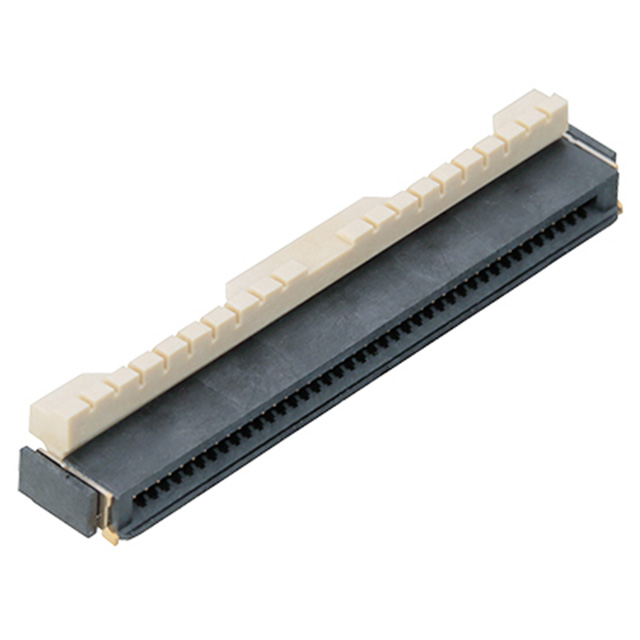

AYF564035A

Active

Panasonic Electric Works

CONN FFC FPC 40POS 0.5MM R/A

Search across all available documentation for this part.

Active

Panasonic Electric Works

CONN FFC FPC 40POS 0.5MM R/A

Technical Specifications

Parameters and characteristics for this part

Specification	AYF564035A

Actuator Material	Liquid Crystal Polymer (LCP)
Cable End Type	Tapered
Connector/Contact Type	Contacts, Top and Bottom
Contact Finish	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	0.4 A
FFC, FCB Thickness	0.3 mm
Flat Flex Type	FPC, FFC
Height Above Board	1.8 mm
Height Above Board	0.071 in
Housing Material	Liquid Crystal Polymer (LCP)
Locking Feature	Flip Lock, Backlock
Material Flammability Rating	UL94 V-0
Mating Cycles	20
Mounting Type	Surface Mount, Right Angle
Number of Positions	40
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.5 mm
Pitch [x]	0.02 in
Termination	Solder
Voltage Rating	50 V

Part	Mating Cycles	FFC, FCB Thickness	Actuator Material	Material Flammability Rating	Height Above Board	Height Above Board	Termination	Mounting Type	Current Rating (Amps)	Number of Positions	Cable End Type	Pitch [x]	Pitch [x]	Voltage Rating	Locking Feature	Connector/Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	Contact Finish	Contact Material	Flat Flex Type
Panasonic Electric Works AYF564035A	20	0.3 mm	Liquid Crystal Polymer (LCP)	UL94 V-0	1.8 mm	0.071 in	Solder	Surface Mount Right Angle	0.4 A	40	Tapered	0.5 mm	0.02 in	50 V	Backlock Flip Lock	Contacts Top and Bottom	85 °C	-55 °C	Liquid Crystal Polymer (LCP)	Gold	Copper Alloy	FFC FPC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

40 Position FFC, FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle
