5-103974-1
ActiveTE Connectivity AMP Connectors
CONN RCPT 2POS IDC 22-26AWG TIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5-103974-1
ActiveTE Connectivity AMP Connectors
CONN RCPT 2POS IDC 22-26AWG TIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 5-103974-1 | 103974 Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Color | Black | Black |
| Connector Type | Receptacle | Receptacle |
| Contact Finish | Tin | Tin, Tin-Lead |
| Contact Finish Thickness | 2.54 µm | 2.54 µm |
| Contact Finish Thickness | 100 µin | 100 µin |
| Contact Type | Female Socket | Female Socket |
| Features | Closed End | Closed End |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 2 | 2 - 11 |
| Number of Rows | 1 | 1 |
| Pitch [x] | 2.54 mm | 2.54 mm |
| Pitch [x] | 0.1 in | 0.1 in |
| Wire Gauge [Max] | 26 AWG | 26 AWG |
| Wire Gauge [Min] | 22 AWG | 22 AWG |
| Wire Type | Ribbon Cable | Ribbon Cable |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 10 | $ 0.88 | |
| 30 | $ 0.84 | |||
| 50 | $ 0.84 | |||
| 110 | $ 0.75 | |||
| 330 | $ 0.73 | |||
| 550 | $ 0.72 | |||
103974 Series
CONN RCPT 8POS IDC 22-26AWG TIN
| Part | Number of Positions | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Wire Type | Connector Type | Features | Pitch [x] | Pitch [x] | Color | Contact Type | Wire Gauge [Min] | Wire Gauge [Max] | Cable Termination | Number of Rows | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 5-103974-7 | 8 | Tin | 2.54 µm | 100 µin | Ribbon Cable | Receptacle | Closed End | 2.54 mm | 0.1 in | Black | Female Socket | 22 AWG | 26 AWG | IDC | 1 | Free Hanging (In-Line) |
TE Connectivity AMP Connectors 5-103974-6 | 7 | Tin | 2.54 µm | 100 µin | Ribbon Cable | Receptacle | Closed End | 2.54 mm | 0.1 in | Black | Female Socket | 22 AWG | 26 AWG | IDC | 1 | Free Hanging (In-Line) |
TE Connectivity AMP Connectors 5-103974-4 | Tin | 2.54 µm | 100 µin | Ribbon Cable | Receptacle | Closed End | 2.54 mm | 0.1 in | Black | Female Socket | 22 AWG | 26 AWG | IDC | 1 | Free Hanging (In-Line) | |
TE Connectivity AMP Connectors 5-103974-3 | 4 | Tin | 2.54 µm | 100 µin | Ribbon Cable | Receptacle | Closed End | 2.54 mm | 0.1 in | Black | Female Socket | 22 AWG | 26 AWG | IDC | 1 | Free Hanging (In-Line) |
TE Connectivity AMP Connectors 5-103974-1 | 2 | Tin | 2.54 µm | 100 µin | Ribbon Cable | Receptacle | Closed End | 2.54 mm | 0.1 in | Black | Female Socket | 22 AWG | 26 AWG | IDC | 1 | Free Hanging (In-Line) |
TE Connectivity AMP Connectors 6-103974-0 | 11 | Tin | 2.54 µm | 100 µin | Ribbon Cable | Receptacle | Closed End | 2.54 mm | 0.1 in | Black | Female Socket | 22 AWG | 26 AWG | IDC | 1 | Free Hanging (In-Line) |
TE Connectivity AMP Connectors 5-103974-8 | 9 | Tin | 2.54 µm | 100 µin | Ribbon Cable | Receptacle | Closed End | 2.54 mm | 0.1 in | Black | Female Socket | 22 AWG | 26 AWG | IDC | 1 | Free Hanging (In-Line) |
TE Connectivity AMP Connectors 103974-7 | 8 | Tin-Lead | 2.54 µm | 100 µin | Ribbon Cable | Receptacle | Closed End | 2.54 mm | 0.1 in | Black | Female Socket | 22 AWG | 26 AWG | IDC | 1 | Free Hanging (In-Line) |
Description
General part information
103974 Series

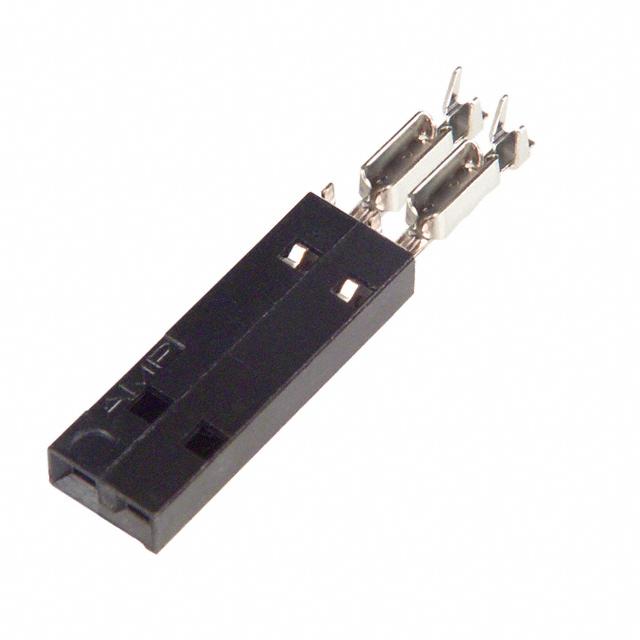

2 Position Rectangular Receptacle Connector IDC Tin 22-26 AWG
