3-5-204-3

Active

TapeCase

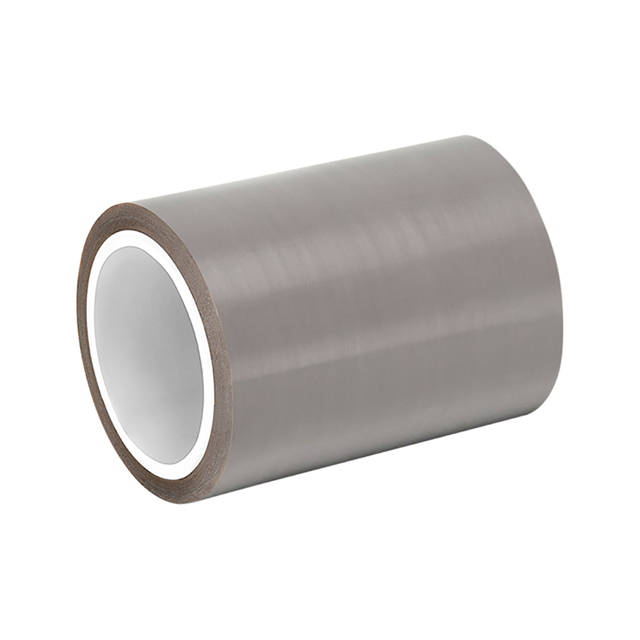

TAPE ELECTRICAL GRAY

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3-5-204-3

Adhesive	Silicone
Backing, Carrier	PTFE Film
Color	Gray
Tape Type	Electrical
Temperature Range	260 °C
Temperature Range	500 °F
Thickness	3 mils
Thickness	0.003 in
Thickness	0.076 mm
Thickness - Adhesive	0.003 "
Thickness - Adhesive	0.076 mm
Thickness - Adhesive	3 mils
Thickness - Backing, Carrier	0.003 in
Thickness - Backing, Carrier	3 mils
Thickness - Backing, Carrier	0.076 mm
Usage	High Temperature, Electrically Insulating

204 Series

...

Part	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Tape Type	Adhesive	Usage	Thickness	Thickness	Thickness	Backing, Carrier	Color	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Temperature Range	Temperature Range	Thickness - Backing, Carrier [custom]	Thickness - Backing, Carrier [custom]	Thickness - Backing, Carrier [custom]
TapeCase 1.75-36-204-10	0.01 "	0.254 mm	10 mils	Electrical	Silicone	Electrically Insulating High Temperature	0.254 mm	10 mils	0.01 "	PTFE Film	Gray	1.5 mils	0.0015 in	0.038 mm	260 °C	500 °F
TapeCase 0.25-5-204-10 (PK2)	0.01 "	0.254 mm	10 mils	Electrical	Silicone	Electrically Insulating High Temperature	0.254 mm	10 mils	0.01 "	PTFE Film	Gray	1.5 mils	0.0015 in	0.038 mm	260 °C	500 °F
TapeCase 1.125-36-204-5				Electrical	Silicone	Electrically Insulating High Temperature	0.127 mm	5 mils	0.005 in	PTFE Film	Gray	1.5 mils	0.0015 in	0.038 mm	260 °C	500 °F	0.005 "	5 mils	0.127 mm
TapeCase 9-5-204-3	0.003 in	0.076 mm	3 mils	Electrical	Silicone	Electrically Insulating High Temperature	0.076 mm	3 mils	0.003 in	PTFE Film	Gray	3 mils	0.003 "	0.076 mm	260 °C	500 °F
TapeCase 1.625-36-204-5				Electrical	Silicone	Electrically Insulating High Temperature	0.127 mm	5 mils	0.005 in	PTFE Film	Gray	1.5 mils	0.0015 in	0.038 mm	260 °C	500 °F	0.005 "	5 mils	0.127 mm
TapeCase 0.125-36-204-5 (PK2)				Electrical	Silicone	Electrically Insulating High Temperature	0.127 mm	5 mils	0.005 in	PTFE Film	Gray	1.5 mils	0.0015 in	0.038 mm	260 °C	500 °F	0.005 "	5 mils	0.127 mm
TapeCase 0.875-36-204-5				Electrical	Silicone	Electrically Insulating High Temperature	0.127 mm	5 mils	0.005 in	PTFE Film	Gray	1.5 mils	0.0015 in	0.038 mm	260 °C	500 °F	0.005 "	5 mils	0.127 mm
TapeCase 3-5-204-3	0.003 in	0.076 mm	3 mils	Electrical	Silicone	Electrically Insulating High Temperature	0.076 mm	3 mils	0.003 in	PTFE Film	Gray	3 mils	0.003 "	0.076 mm	260 °C	500 °F
TapeCase 2.25-36-204-3	0.003 in	0.076 mm	3 mils	Electrical	Silicone	Electrically Insulating High Temperature	0.076 mm	3 mils	0.003 in	PTFE Film	Gray	3 mils	0.003 "	0.076 mm	260 °C	500 °F
TapeCase 3.5-36-204-5				Electrical	Silicone	Electrically Insulating High Temperature	0.127 mm	5 mils	0.005 in	PTFE Film	Gray	1.5 mils	0.0015 in	0.038 mm	260 °C	500 °F	0.005 "	5 mils	0.127 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	4	$ 63.76

Description

General part information

204 Series

Electrical Tape Silicone Adhesive Gray X
