10138400-111141LF
ActiveAmphenol ICC (FCI)

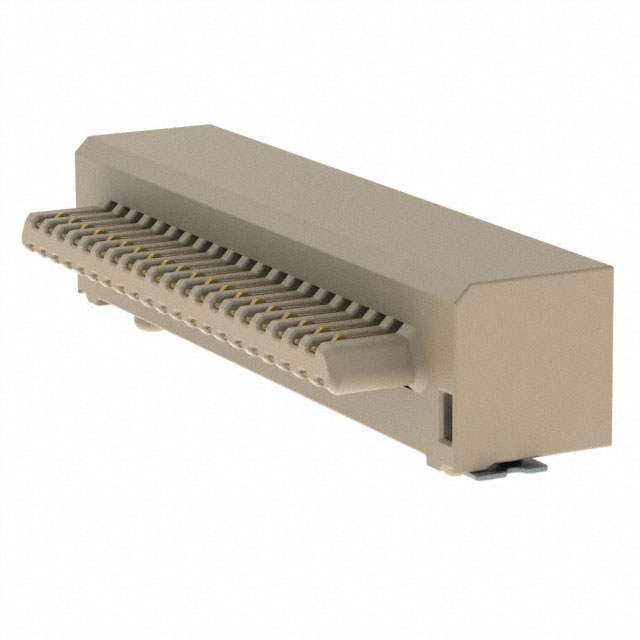

CONN PLUG 41POS R/A SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
10138400-111141LF
ActiveAmphenol ICC (FCI)
CONN PLUG 41POS R/A SMD GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 10138400-111141LF |
|---|---|
| Contact Finish | GXT™, Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Features | Solder Retention, Board Guide |
| Height Above Board | 0.211 in |
| Height Above Board | 5.35 mm |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 41 |
| Number of Rows | 2 |
| Pitch [x] | 0.039 in |
| Pitch [x] | 1 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.63 | |
| 10 | $ 2.00 | |||
| 25 | $ 1.81 | |||
| 50 | $ 1.67 | |||
| 100 | $ 1.55 | |||
| 250 | $ 1.40 | |||
| Digi-Reel® | 1 | $ 2.63 | ||
| 10 | $ 2.00 | |||
| 25 | $ 1.81 | |||
| 50 | $ 1.67 | |||
| 100 | $ 1.55 | |||
| 250 | $ 1.40 | |||
| Tape & Reel (TR) | 500 | $ 1.30 | ||
| 1000 | $ 1.21 | |||
| 1500 | $ 1.16 | |||
| 2500 | $ 1.11 | |||
| 3500 | $ 1.07 | |||
| 5000 | $ 1.04 | |||
Description
General part information
10138400 Series
41 Position Connector Plug, Center Strip Contacts Surface Mount, Right Angle Gold, GXT™
