FA1-NZRP-PCB-9

Obsolete

AMPHENOL RF

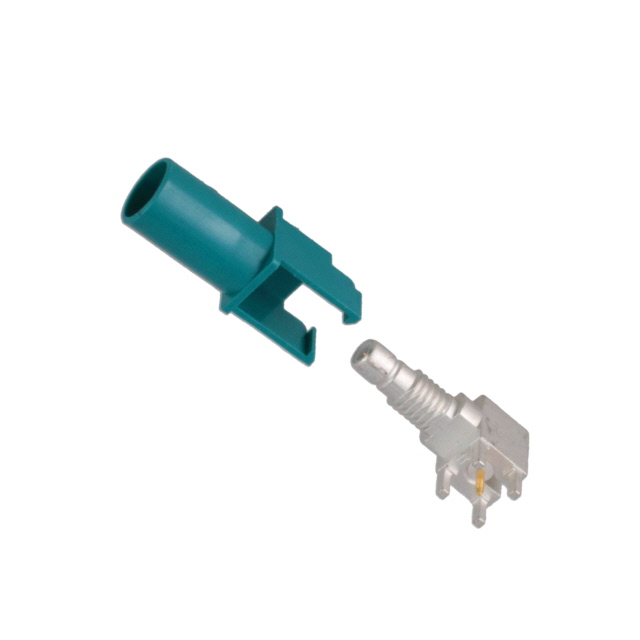

CONN FAKRA PLUG R/A 50 OHM PCB

Search across all available documentation for this part.

Obsolete

AMPHENOL RF

CONN FAKRA PLUG R/A 50 OHM PCB

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FA1-NZRP-PCB-9	FA1-NZRP Series

Body Finish	Tin	Tin
Body Material	Zinc Die Cast	Zinc Die Cast
Center Contact Material	Brass	Brass
Center Contact Plating	Gold	Gold
Connector Style	SMB, Fakra	SMB, Fakra
Connector Type	Male Pin, Plug	Male Pin, Plug
Contact Termination	Solder	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	Locking Ramp	Locking Ramp
Features	Code Z	Code Z
Frequency - Max [Max]	6000 MHz	2.5 - 6000 MHz
Impedance	50 Ohms	50 Ohms
Includes	1 Connector, 1 Housing	1 Connector, 1 Housing
Insertion Loss	0.3 dB	0.3 dB
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Ports	1	1
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Shield Termination	Solder	Solder

CONN FAKRA PLUG R/A 50 OHM PCB

Part	Number of Ports	Connector Style	Frequency - Max [Max]	Includes	Center Contact Material	Connector Type	Impedance	Operating Temperature [Max]	Operating Temperature [Min]	Insertion Loss	Fastening Type	Dielectric Material	Features	Mounting Type	Body Material	Body Finish	Contact Termination	Shield Termination	Center Contact Plating
AMPHENOL RF FA1-NZRP-PCB-9	1	Fakra, SMB	6000 MHz	1 Connector, 1 Housing	Brass	Male Pin, Plug	50 Ohms	125 °C	-65 ░C	0.3 dB	Locking Ramp	Polytetrafluoroethylene (PTFE)	Code Z	Through Hole, Right Angle	Zinc Die Cast	Tin	Solder	Solder	Gold
AMPHENOL RF FA1-NZRP-PCB-8	1	Fakra, SMB	6000 MHz	1 Connector, 1 Housing	Brass	Male Pin, Plug	50 Ohms	125 °C	-65 ░C	0.3 dB	Locking Ramp	Polytetrafluoroethylene (PTFE)	Code Z	Through Hole, Right Angle	Zinc Die Cast	Tin	Solder	Solder	Gold
AMPHENOL RF FA1-NZRP-PCB-8A	1	Fakra, SMB	2.5 GHz		Brass	Male Pin, Plug	50 Ohms	125 °C	-65 ░C		Locking Ramp	Polytetrafluoroethylene (PTFE)	Code Z	Through Hole, Right Angle	Zinc Die Cast	Tin	Solder	Solder	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

SMB, Fakra Connector Plug, Male Pin 50 Ohms Through Hole, Right Angle Solder
