U90-G361-101A

Active

Amphenol ICC (Commercial Products)

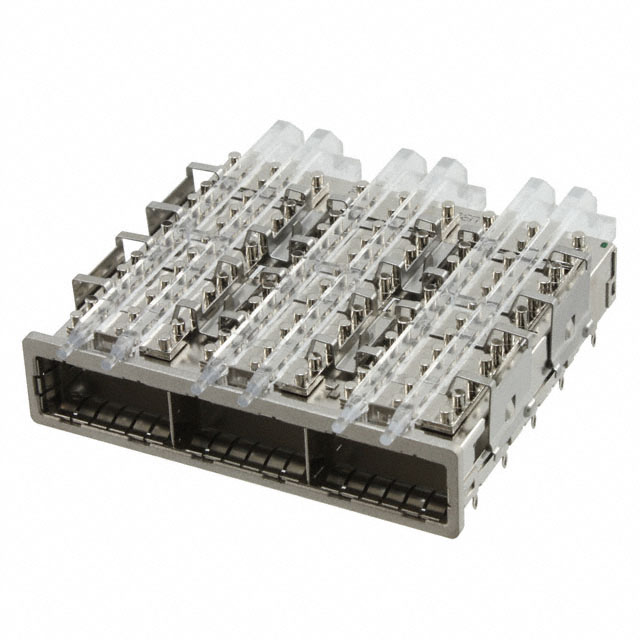

CONN QSFP CAGE 1X3 W/HSINK R/A

Deep-Dive with AI

Search across all available documentation for this part.

U90-G361-101A

Active

Amphenol ICC (Commercial Products)

CONN QSFP CAGE 1X3 W/HSINK R/A

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	U90-G361-101A	U90 Series

Connector Style	Heat Sink, Ganged (1 x 3), Cage	Cage with Heat Sink, Receptacle with Cage, Ganged (2x3), Heat Sink, Ganged (1 x 3), Cage, Ganged (1 x 4) with Heat Sink
Connector Type	QSFP	QSFP, QSFP+
Contact Finish	-	Gold
Contact Finish Thickness	-	0.76 Ám
Contact Finish Thickness	-	30 Áin
Features	Light Pipe, EMI Shielded	EMI Shielded, Light Pipe, Dust Cap
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Positions	-	228
Number of Positions	-	38
Number of Positions	-	6
Termination	Press-Fit	Press-Fit

U90 Series

QSFP CAGE ASSEMBLY

Part	Mounting Type	Connector Style	Termination	Features	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Number of Positions [custom]	Number of Positions [x]	Number of Positions [y]
Amphenol ICC (Commercial Products) U90-H161-100A	Through Hole, Right Angle	Cage with Heat Sink	Press-Fit	EMI Shielded	QSFP
Amphenol ICC (Commercial Products) U90-A181-1001	Through Hole, Right Angle	Cage with Heat Sink	Press-Fit	EMI Shielded	QSFP
Amphenol ICC (Commercial Products) U90-B305-4081-100	Through Hole, Right Angle	Ganged (2x3), Receptacle with Cage	Press-Fit	EMI Shielded, Light Pipe	QSFP+	0.76 Ám	30 Áin	Gold	228	38	6
Amphenol ICC (Commercial Products) U90-G361-101A	Through Hole, Right Angle	Cage, Ganged (1 x 3), Heat Sink	Press-Fit	EMI Shielded, Light Pipe	QSFP
Amphenol ICC (Commercial Products) U90-G461-103A	Through Hole, Right Angle	Cage, Ganged (1 x 4) with Heat Sink	Press-Fit	EMI Shielded, Light Pipe	QSFP
Amphenol ICC (Commercial Products) U90-G351-101A	Through Hole, Right Angle	Cage, Ganged (1 x 3), Heat Sink	Press-Fit	EMI Shielded, Light Pipe	QSFP
Amphenol ICC (Commercial Products) U90-G351-100A	Through Hole, Right Angle	Cage, Ganged (1 x 3), Heat Sink	Press-Fit	EMI Shielded	QSFP
Amphenol ICC (Commercial Products) U90-G461-101A	Through Hole, Right Angle	Cage, Ganged (1 x 4) with Heat Sink	Press-Fit	EMI Shielded, Light Pipe	QSFP
Amphenol ICC (Commercial Products) U90-G361-100A	Through Hole, Right Angle	Cage, Ganged (1 x 3), Heat Sink	Press-Fit	EMI Shielded	QSFP
Amphenol ICC (Commercial Products) U90-T161-1D0A	Through Hole, Right Angle	Cage with Heat Sink	Press-Fit	Dust Cap, EMI Shielded	QSFP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	180	$ 22.05

Description

General part information

U90 Series

Position QSFP Cage, Ganged (1 x 3) with Heat Sink Connector Press-Fit Through Hole, Right Angle

Documents

Technical documentation and resources

No documents available
