CDBA10CST0130L-HF

Active

Comchip Technology

DIODE ARR SCHOTT 30V DFN2510

Search across all available documentation for this part.

Active

Comchip Technology

DIODE ARR SCHOTT 30V DFN2510

Technical Specifications

Parameters and characteristics for this part

Specification	CDBA10CST0130L-HF

Current - Average Rectified (Io) (per Diode)	100 mA
Current - Reverse Leakage @ Vr	7 µA
Diode Configuration	4 Independent
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C

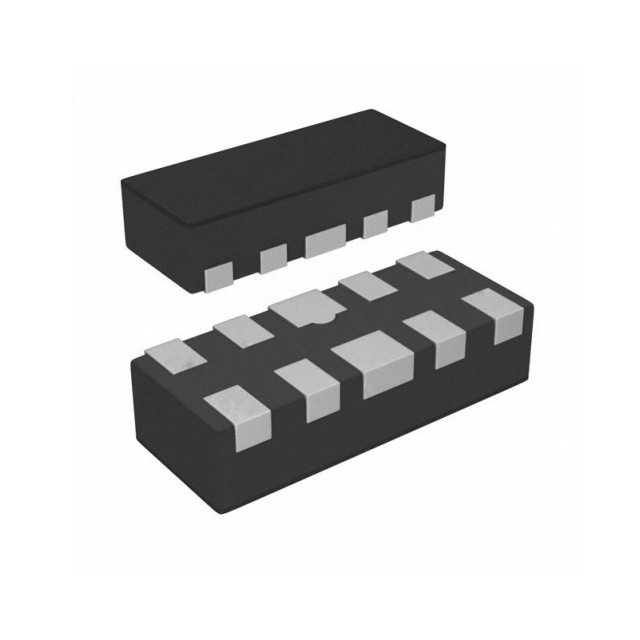

Package / Case	10-XFDFN
Speed	Any Speed
Speed	200 mA
Supplier Device Package	DFN2510-10
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	30 V
Voltage - Forward (Vf) (Max) @ If	370 mV

DIODE ARR SCHOTT 30V DFN2510

Part	Voltage - Forward (Vf) (Max) @ If	Current - Reverse Leakage @ Vr	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Average Rectified (Io) (per Diode)	Diode Configuration	Technology	Package / Case	Supplier Device Package	Mounting Type	Speed	Speed
Comchip Technology CDBA10CST0130L-HF	370 mV	7 µA	150 °C	-55 °C	30 V	100 mA	4 Independent	Schottky	10-XFDFN	DFN2510-10	Surface Mount	Any Speed	200 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode Array 4 Independent 30 V 100mA (DC) Surface Mount 10-XFDFN

Technical documentation and resources

No documents available
