PE45565

Active

Pasternack

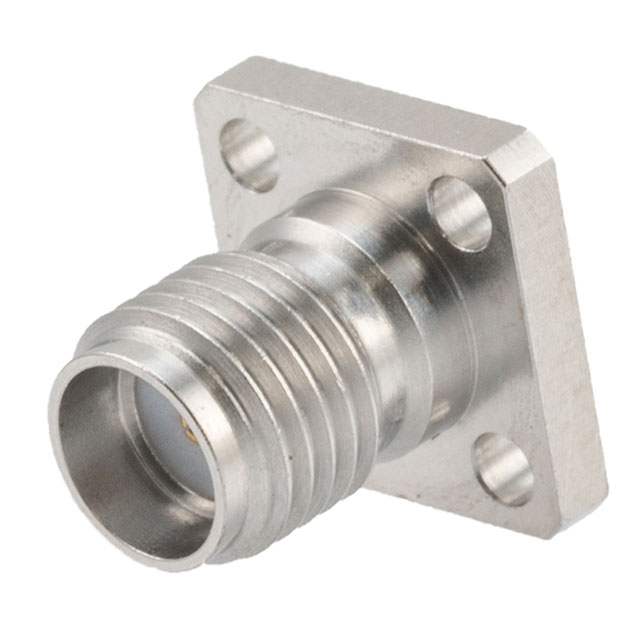

SMA(F) FLD RPL 4HOLE 0.036" PIN

Search across all available documentation for this part.

Active

Pasternack

SMA(F) FLD RPL 4HOLE 0.036" PIN

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PE45565	PE4556 Series

Body Material	Stainless Steel	Stainless Steel
Center Contact Material	Beryllium Copper	Beryllium Copper
Center Contact Plating	Gold	Gold
Connector Style	SMA	SMA
Connector Type	Receptacle, Female Socket	Receptacle, Female Socket
Contact Termination	Compression	Compression
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Features	Field Replaceable, For Hermetically Sealed Pin	Field Replaceable, For Hermetically Sealed Pin
Frequency - Max [Max]	27 GHz	27 GHz
Housing Color	Silver	Silver
Impedance	50 Ohms	50 Ohms
Mating Cycles	500	500
Mounting Feature	Flange	Flange
Number of Ports	1	1
Operating Temperature [Max]	165 °C	165 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Shield Termination	Screw	Screw

SMA(F) FLD RPL 4HOLE 0.018" PIN

Part	Dielectric Material	Mating Cycles	Shield Termination	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Feature	Connector Style	Housing Color	Frequency - Max [Max]	Number of Ports	Contact Termination	Impedance	Body Material	Connector Type	Center Contact Material	Center Contact Plating	Features
Pasternack PE45569	Polytetrafluoroethylene (PTFE)	500	Screw	-65 ░C	165 °C	Flange	SMA	Silver	27 GHz	1	Compression	50 Ohms	Stainless Steel	Female Socket, Receptacle	Beryllium Copper	Gold	Field Replaceable, For Hermetically Sealed Pin
Pasternack PE45565	Polytetrafluoroethylene (PTFE)	500	Screw	-65 ░C	165 °C	Flange	SMA	Silver	27 GHz	1	Compression	50 Ohms	Stainless Steel	Female Socket, Receptacle	Beryllium Copper	Gold	Field Replaceable, For Hermetically Sealed Pin
Pasternack PE45568	Polytetrafluoroethylene (PTFE)	500	Screw	-65 ░C	165 °C	Flange	SMA	Silver	27 GHz	1	Compression	50 Ohms	Stainless Steel	Female Socket, Receptacle	Beryllium Copper	Gold	Field Replaceable, For Hermetically Sealed Pin
Pasternack PE45567	Polytetrafluoroethylene (PTFE)	500	Screw	-65 ░C	165 °C	Flange	SMA	Silver	27 GHz	1	Compression	50 Ohms	Stainless Steel	Female Socket, Receptacle	Beryllium Copper	Gold	Field Replaceable, For Hermetically Sealed Pin
Pasternack PE45564	Polytetrafluoroethylene (PTFE)	500	Screw	-65 ░C	165 °C	Flange	SMA	Silver	27 GHz	1	Compression	50 Ohms	Stainless Steel	Female Socket, Receptacle	Beryllium Copper	Gold	Field Replaceable, For Hermetically Sealed Pin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMA Connector Receptacle, Female Socket 50 Ohms Panel Mount Compression
