163A20499X
ActiveAmphenol CONEC

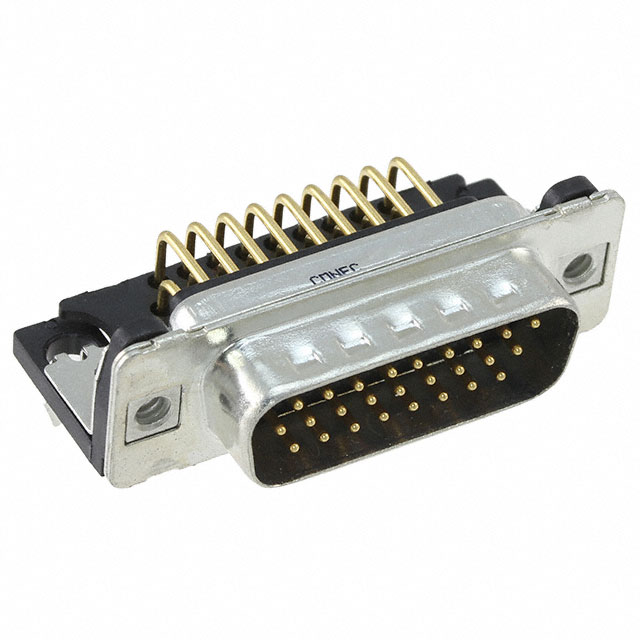

CONN D-SUB HD PLUG 26P R/A SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
163A20499X
ActiveAmphenol CONEC
CONN D-SUB HD PLUG 26P R/A SLDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 163A20499X |
|---|---|
| Backset Spacing | 0.314 in |
| Backset Spacing | 7.98 mm |
| Color | Black |
| Connector Style | High Density, D-Sub |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | Grounding Indents, Mounting Brackets, Board Lock |
| Flange Feature | Housing/Shell (4-40) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Board Edge |
| Number of Positions | 26 |
| Number of Rows | 3 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Size, Connector Layout | 2 |
| Shell Size, Connector Layout | (DA, A) High Density |
| Termination | Solder |
| Voltage Rating | 60 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 22.81 | |
| 10 | $ 17.57 | |||
| 25 | $ 15.91 | |||
| 50 | $ 14.78 | |||
| 100 | $ 13.76 | |||
| 250 | $ 12.56 | |||
| 500 | $ 11.75 | |||
Description
General part information
163A204 Series
26 Position D-Sub, High Density Plug, Male Pins Connector
Documents
Technical documentation and resources
