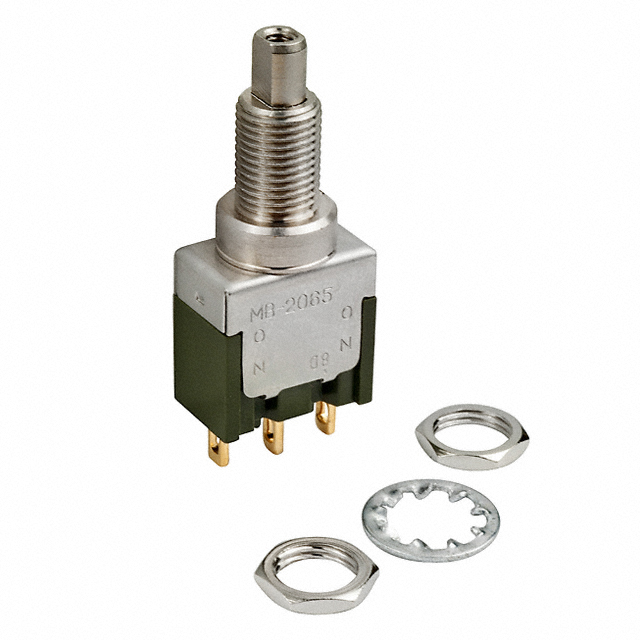

MB2065SS1G01

Obsolete

NKK Switches

SWITCH PUSH SPDT 0.4VA 28V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MB2065SS1G01

Obsolete

NKK Switches

SWITCH PUSH SPDT 0.4VA 28V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MB2065SS1G01

Actuator Marking	No Marking
Actuator Type	Plunger for Cap
Circuit	SPDT
Current Rating (Amps)	0.4 VA
Electrical Life	50000 Cycles
Features	Epoxy Sealed Terminals
Mechanical Life	100000 Cycles
Mounting Type	Panel Mount, Rear
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	6.5 mm
Switch Function	On-On
Termination Style	Solder Lug
Type	Standard
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

MB2065S Series

Part	Panel Cutout Dimensions [diameter]	Circuit	Actuator Type	Type	Actuator Marking	Voltage Rating - DC	Mounting Type	Features	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Voltage Rating - AC	Mechanical Life	Electrical Life	Switch Function	Current Rating (Amps)	Color - Actuator/Cap	Ingress Protection
NKK Switches MB2065SB1W01	12.5 mm	SPDT	Plunger for Cap	Standard	No Marking	30 V	Panel Mount Rear	Epoxy Sealed Terminals	-30 ░C	85 °C	Solder Lug	125 V	100000 Cycles	25000 Steps	On-On	3 A 6 A
NKK Switches MB2065SS2W13-BG	6.5 mm	SPDT	Button Round	Standard	No Marking	30 V	Through Hole	Epoxy Sealed Terminals	-30 ░C	85 °C	PC Pin	125 V	100000 Cycles	25000 Steps	On-On	3 A 6 A	Blue
NKK Switches MB2065SD3W01-CC	6.5 mm	SPDT	Button Round	Standard	No Marking	30 V	Panel Mount Rear	Epoxy Sealed Terminals	-30 ░C	85 °C	Solder Lug	125 V		25000 Steps	On-On	3 A 6 A	Red	IP67 - Dust Tight Waterproof
NKK Switches MB2065SS2G30-BH		SPDT	Button Round	Standard	No Marking	28 V	Through Hole Right Angle	Epoxy Sealed Terminals	-30 ░C	85 °C	PC Pin	28 V	100000 Cycles	50000 Cycles	On-On	0.4 VA
NKK Switches MB2065SS1W01-CA	6.5 mm	SPDT	Button Round	Standard	No Marking	30 V	Panel Mount Rear	Epoxy Sealed Terminals	-30 ░C	85 °C	Solder Lug	125 V	100000 Cycles	25000 Steps	On-On	3 A 6 A	Black
NKK Switches MB2065SS1G01	6.5 mm	SPDT	Plunger for Cap	Standard	No Marking	28 V	Panel Mount Rear	Epoxy Sealed Terminals	-30 ░C	85 °C	Solder Lug	28 V	100000 Cycles	50000 Cycles	On-On	0.4 VA
NKK Switches MB2065SS1W01-CG	6.5 mm	SPDT	Button Round	Standard	No Marking	30 V	Panel Mount Rear	Epoxy Sealed Terminals	-30 ░C	85 °C	Solder Lug	125 V	100000 Cycles	25000 Steps	On-On	3 A 6 A	Blue
NKK Switches MB2065SB1W01-4G-A	12.5 mm	SPDT	Button Round	Standard	No Marking	30 V	Panel Mount Rear	Epoxy Sealed Terminals	-30 ░C	85 °C	Solder Lug	125 V	100000 Cycles	25000 Steps	On-On	3 A 6 A	Blue
NKK Switches MB2065SS1W01-BG	6.5 mm	SPDT	Button Round	Standard	No Marking	30 V	Panel Mount Rear	Epoxy Sealed Terminals	-30 ░C	85 °C	Solder Lug	125 V	100000 Cycles	25000 Steps	On-On	3 A 6 A	Blue
NKK Switches MB2065SS2G30-BF		SPDT	Button Round	Standard	No Marking	28 V	Through Hole Right Angle	Epoxy Sealed Terminals	-30 ░C	85 °C	PC Pin	28 V	100000 Cycles	50000 Cycles	On-On	0.4 VA	Green

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

MB2065S Series

Pushbutton Switch SPDT Standard Panel Mount, Rear
