GRD1075071PA
ActiveEssentra Access Solutions

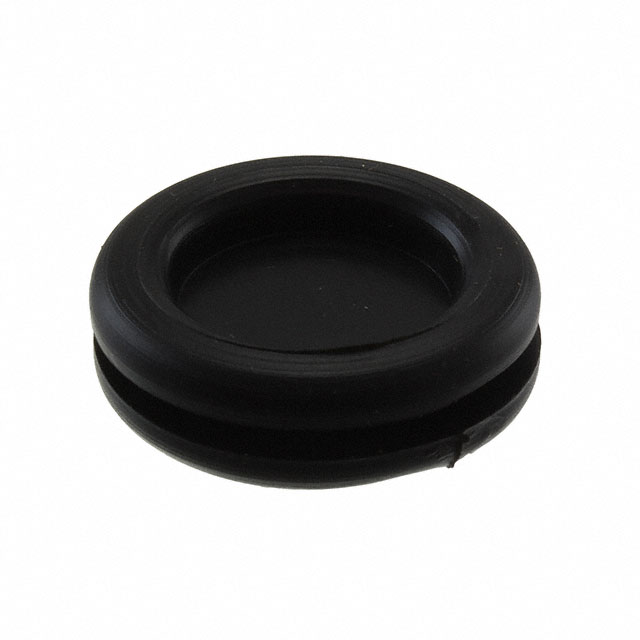

DIAPHRAGM GROMMET - TWO SIDED CU
Deep-Dive with AI
Search across all available documentation for this part.
GRD1075071PA
ActiveEssentra Access Solutions
DIAPHRAGM GROMMET - TWO SIDED CU
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | GRD1075071PA |
|---|---|
| Bushing, Grommet Type | Grommet |
| Color | Black |
| Diameter - Inside [diameter] | 16 mm |
| Diameter - Inside [diameter] | 0.63 in |
| For Use With/Related Products | Wires, Cable |
| Material | Poly-Vinyl Chloride (PVC) |
| Material Flammability Rating | UL94 HB |
| Panel Cutout Dimensions [diameter] | 0.75 in |
| Panel Cutout Dimensions [diameter] | 19.05 mm |
| Panel Thickness | 2.03 mm |
| Panel Thickness | 0.08 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 0.53 | |
| 10 | $ 0.40 | |||
| 25 | $ 0.36 | |||
| 50 | $ 0.33 | |||
| 100 | $ 0.31 | |||
| 250 | $ 0.28 | |||
| 500 | $ 0.26 | |||
| 1000 | $ 0.24 | |||
Description
General part information
GRD1075071 Series
Circular - 0.750" (19.05mm) Grommet 0.630" (16.00mm) Black
Documents
Technical documentation and resources
No documents available
