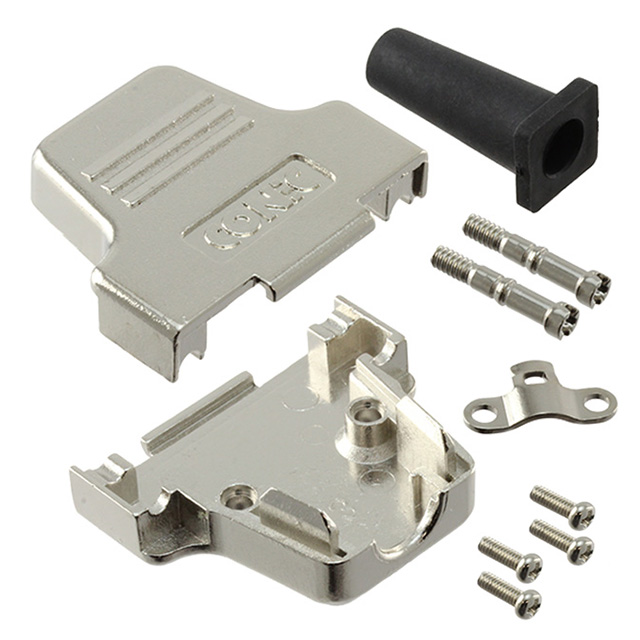

165X17419X

Active

Amphenol CONEC

CONN BACKSHELL 15POS 180DEG SHLD

Search across all available documentation for this part.

Active

Amphenol CONEC

CONN BACKSHELL 15POS 180DEG SHLD

Technical Specifications

Parameters and characteristics for this part

Part	Material	Features	Number of Positions	Compatible D-Sub Size	Primary Material	Compatible Shell Size	Cable Type	Cable Exit	Accessory Type	Plating	Shielding	Hardware	Color
Amphenol CONEC 165X17449X	Metal Zinc	Mating Screws 4-40	50	50pos HD78pos	Metal	D	Round	180 °	Two Piece Backshell	Nickel	Shielded
Amphenol CONEC 165X17459X	Zinc Die Cast	IP20 Mating Screws M3	9	9pos HD15pos	Metal	E	Round	180 °	Two Piece Backshell	Nickel	Shielded	Assembly Hardware Strain Relief	Silver
Amphenol CONEC 165X17419X	Metal Zinc	Mating Screws 4-40	15	15pos HD26pos	Metal	A	Round	180 °	Two Piece Backshell	Nickel	Shielded
Amphenol CONEC 165X17409X	Metal Zinc	Mating Screws 4-40	9	9pos HD15pos	Metal	E	Round	180 °	Two Piece Backshell	Nickel	Shielded
Amphenol CONEC 165X17409XE	Metal Zinc	Mating Screws 4-40	9	9pos HD15pos	Metal	E	Round	180 °	Two Piece Backshell	Nickel	Shielded
Amphenol CONEC 165X17499X	Metal Zinc	Mating Screws M3	50	50pos HD78pos	Metal	D	Round	180 °	Two Piece Backshell	Nickel	Shielded	Strain Relief
Amphenol CONEC 165X17429X	Metal Zinc	Mating Screws 4-40		25pos HD44pos	Metal	B	Round	180 °	Two Piece Backshell	Nickel	Shielded
Amphenol CONEC 165X17469X	Metal Zinc	Mating Screws M3	15	15pos HD26pos	Metal	A	Round	180 °	Two Piece Backshell	Nickel	Shielded	Strain Relief

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

15 Position Two Piece Backshell Connector 180° Shielded
