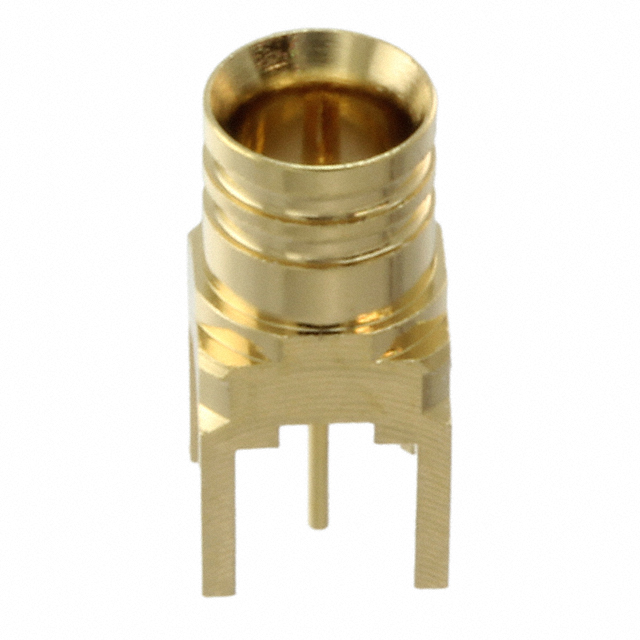

MMCX7-J-P-GF-ST-TH1
ActiveSamtec Inc.
RF / COAXIAL CONNECTOR, MMCX COAXIAL, STRAIGHT JACK, THROUGH HOLE VERTICAL, 75 OHM
Deep-Dive with AI
Search across all available documentation for this part.
MMCX7-J-P-GF-ST-TH1
ActiveSamtec Inc.
RF / COAXIAL CONNECTOR, MMCX COAXIAL, STRAIGHT JACK, THROUGH HOLE VERTICAL, 75 OHM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MMCX7-J-P-GF-ST-TH1 |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | MMCX |
| Connector Type | Female Socket, Jack |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Housing Color | Gold |
| Impedance | 75 Ohms |
| Mounting Type | Through Hole |
| Number of Ports | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
MMCX7-J Series
MMCX Connector Jack, Female Socket 75 Ohms Through Hole Solder
