85136-1

Active

TE Connectivity AMP Connectors

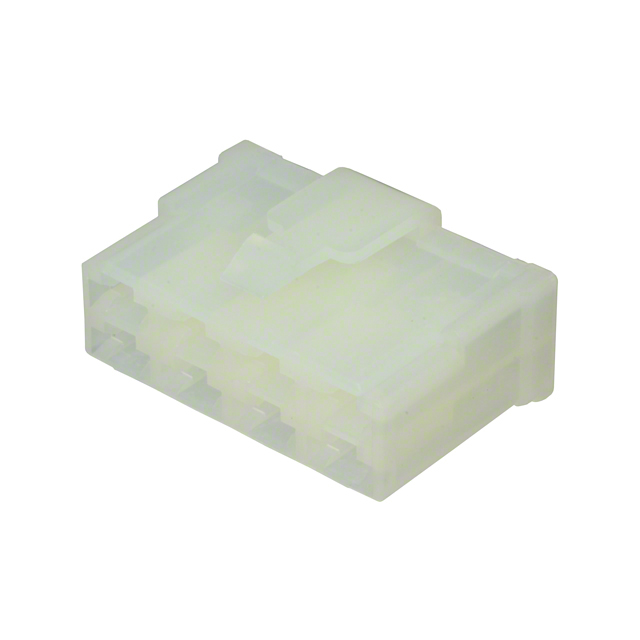

CONN RCPT HSG 0.25 8POS NATURAL

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 0.25 8POS NATURAL

Technical Specifications

Parameters and characteristics for this part

Specification	85136-1

Color	Natural
For Use With/Related Products	0.25 in
For Use With/Related Products	Quick Connects
For Use With/Related Products	6.35 mm
Gender	Female, Receptacle
Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	8
Stacking Direction	Top to Bottom and Side to Side
Style	Housing
Terminal Size	6.35 mm
Terminal Size	0.25 in
Terminal Type	Disconnect, Quick Connect

CONN RCPT HSG 0.25 8POS NATURAL

Part	Terminal Size	Terminal Size	Material	Note	Color	Stacking Direction	Mounting Type	Style	For Use With/Related Products	For Use With/Related Products	For Use With/Related Products	Number of Positions	Terminal Type	Gender
TE Connectivity AMP Connectors 85136-1	6.35 mm	0.25 in	Polyamide (PA66), Nylon 6/6	Contacts Not Included	Natural	Top to Bottom and Side to Side	Free Hanging (In-Line)	Housing	0.25 in	Quick Connects	6.35 mm	8	Disconnect, Quick Connect	Female, Receptacle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Position Housing Connector Female, Receptacle Natural 0.250" (6.35mm)
