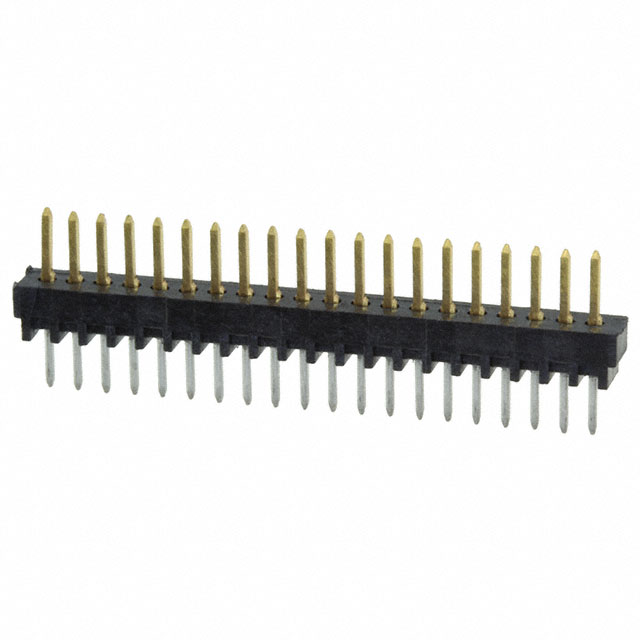

CONN HEADER VERT 20POS 1.27MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
6-104178-1
ActiveTE Connectivity AMP Connectors
CONN HEADER VERT 20POS 1.27MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 6-104178-1 | 104178 Series |
|---|---|---|
| Applications | Medical, General Purpose, Automotive, Telecommunications | Medical, General Purpose, Automotive, Telecommunications |
| Connector Type | Header | Header |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish - Post | Tin | Tin, Tin-Lead |
| Contact Finish Thickness - Mating | 30 Áin | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness - Post | 150 Áin | 150 Áin |
| Contact Finish Thickness - Post | 3.81 Ám | 3.81 Ám |
| Contact Length - Mating | 3.05 mm | 3.05 mm |
| Contact Length - Mating | 0.12 in | 0.12 in |
| Contact Length - Post | 2.54 mm | 2.54 mm |
| Contact Length - Post | 0.1 in | 0.1 in |
| Contact Material | Copper Alloy | Copper Alloy |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Fastening Type | Push-Pull | Push-Pull |
| Insulation Color | Black | Black |
| Insulation Height | 0.1 in | 0.1 in |
| Insulation Height | 2.54 mm | 2.54 mm |
| Insulation Material | Thermoplastic | Thermoplastic |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole |
| Number of Positions | 20 | 4 - 20 |
| Number of Positions Loaded | All | All |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Pitch - Mating | 0.05 in | 0.05 in |
| Pitch - Mating | 1.27 mm | 1.27 mm |
| Shrouding | Unshrouded | Unshrouded |
| Style | Board to Board, Cable | Board to Board, Cable |
| Termination | Solder | Solder |
| Voltage Rating | 30 VAC | 30 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.55 | |
| 10 | $ 2.27 | |||
| 100 | $ 2.04 | |||
104178 Series
CONN HEADER VERT 25POS 1.27MM
| Part | Fastening Type | Contact Finish - Post | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Type | Applications | Contact Length - Mating | Contact Length - Mating | Insulation Material | Pitch - Mating | Pitch - Mating | Material Flammability Rating | Contact Material | Contact Finish - Mating | Insulation Height | Insulation Height | Operating Temperature [Min] | Operating Temperature [Max] | Contact Shape | Insulation Color | Voltage Rating | Number of Positions Loaded | Mounting Type | Style | Number of Rows | Termination | Connector Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Shrouding | Contact Length - Post | Contact Length - Post | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 6-104178-3 | Push-Pull | Tin | 150 Áin | 3.81 Ám | Male Pin | Automotive, General Purpose, Medical, Telecommunications | 3.05 mm | 0.12 in | Thermoplastic | 0.05 in | 1.27 mm | UL94 V-0 | Copper Alloy | Gold | 0.1 in | 2.54 mm | -65 ░C | 105 ░C | Square | Black | 30 VAC | All | Through Hole | Board to Board, Cable | 1 | Solder | Header | 30 Áin | 0.76 Ám | Unshrouded | 2.54 mm | 0.1 in | |
TE Connectivity AMP Connectors 5-104178-5 | Push-Pull | Tin | 150 Áin | 3.81 Ám | Male Pin | Automotive, General Purpose, Medical, Telecommunications | 3.05 mm | 0.12 in | Thermoplastic | 0.05 in | 1.27 mm | UL94 V-0 | Copper Alloy | Gold | 0.1 in | 2.54 mm | -65 ░C | 105 ░C | Square | Black | 30 VAC | All | Through Hole | Board to Board, Cable | 1 | Solder | Header | 30 Áin | 0.76 Ám | Unshrouded | 2.54 mm | 0.1 in | 8 |
TE Connectivity AMP Connectors 5-104178-8 | Push-Pull | Tin | 150 Áin | 3.81 Ám | Male Pin | Automotive, General Purpose, Medical, Telecommunications | 3.05 mm | 0.12 in | Thermoplastic | 0.05 in | 1.27 mm | UL94 V-0 | Copper Alloy | Gold | 0.1 in | 2.54 mm | -65 ░C | 105 ░C | Square | Black | 30 VAC | All | Through Hole | Board to Board, Cable | 1 | Solder | Header | 30 Áin | 0.76 Ám | Unshrouded | 2.54 mm | 0.1 in | 13 |
TE Connectivity AMP Connectors 104178-1 | Push-Pull | Tin-Lead | 150 Áin | 3.81 Ám | Male Pin | Automotive, General Purpose, Medical, Telecommunications | 3.05 mm | 0.12 in | Thermoplastic | 0.05 in | 1.27 mm | UL94 V-0 | Copper Alloy | Gold | 0.1 in | 2.54 mm | -65 ░C | 105 ░C | Square | Black | 30 VAC | All | Through Hole | Board to Board, Cable | 1 | Solder | Header | 30 Áin | 0.76 Ám | Unshrouded | 2.54 mm | 0.1 in | 4 |
TE Connectivity AMP Connectors 5-104178-1 | Push-Pull | Tin | 150 Áin | 3.81 Ám | Male Pin | Automotive, General Purpose, Medical, Telecommunications | 3.05 mm | 0.12 in | Thermoplastic | 0.05 in | 1.27 mm | UL94 V-0 | Copper Alloy | Gold | 0.1 in | 2.54 mm | -65 ░C | 105 ░C | Square | Black | 30 VAC | All | Through Hole | Board to Board, Cable | 1 | Solder | Header | 30 Áin | 0.76 Ám | Unshrouded | 2.54 mm | 0.1 in | 4 |
TE Connectivity AMP Connectors 6-104178-1 | Push-Pull | Tin | 150 Áin | 3.81 Ám | Male Pin | Automotive, General Purpose, Medical, Telecommunications | 3.05 mm | 0.12 in | Thermoplastic | 0.05 in | 1.27 mm | UL94 V-0 | Copper Alloy | Gold | 0.1 in | 2.54 mm | -65 ░C | 105 ░C | Square | Black | 30 VAC | All | Through Hole | Board to Board, Cable | 1 | Solder | Header | 30 Áin | 0.76 Ám | Unshrouded | 2.54 mm | 0.1 in | 20 |
Description
General part information
104178 Series
Connector Header Through Hole 20 position 0.050" (1.27mm)
