50M060100H008

Active

Essentra Access Solutions

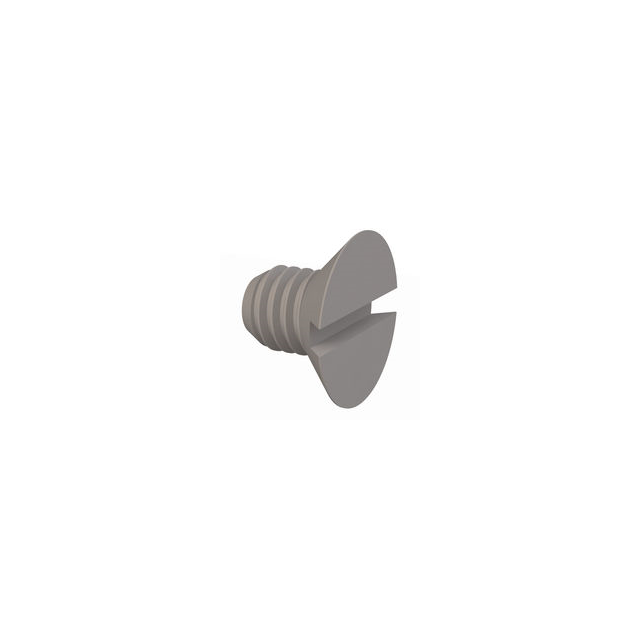

90 SLOTTED CSK SCREW, M6 X 1 THR

Search across all available documentation for this part.

Active

Essentra Access Solutions

90 SLOTTED CSK SCREW, M6 X 1 THR

Technical Specifications

Parameters and characteristics for this part

...

Part	Screw Head Type	Head Diameter [diameter]	Head Diameter [diameter]	Drive Type	Length - Overall [x]	Length - Overall [x]	Material	Type	Thread Size	Length - Below Head [x]	Length - Below Head [x]	Length - Below Head	Length - Below Head	Length - Overall	Length - Overall	Head Height	Head Height	Head Height [z]	Head Height [z]
Essentra Access Solutions 50M060100P060	Pan Head	0.472 in	12 mm	Phillips	64.6 mm	2.543 in	Nylon	Machine Screw	M6x1	60 mm	2.362 in
Essentra Access Solutions 50M060100J020	Hex Head	0.394 in	10 mm	Hex Socket			Nylon	Bolt	M6x1			0.787 in	20 mm	24.7 mm	0.972 in
Essentra Access Solutions 50M060100K050	Hex Head	0.394 in	10 mm	Slotted	54.7 mm	2.154 in	Nylon	Bolt	M6x1	50 mm	1.969 in
Essentra Access Solutions 50M060100J060	Hex Head	0.394 in	10 mm	Hex Socket			Nylon	Bolt	M6x1	60 mm	2.362 in			64.7 mm	2.547 in
Essentra Access Solutions 50M060100H016	Flat Head			Slotted	16 mm	0.63 "	Nylon	Machine Screw	M6x1							0.13 in	3.3 mm
Essentra Access Solutions 50M060100G025	Pan Head	0.472 in	12 mm	Phillips			Nylon	Machine Screw	M6x1	25 mm	0.984 "			29.6 mm	1.165 in			0.181 in	4.6 mm
Essentra Access Solutions 50M060100K075	Hex Head	0.394 in	10 mm	Slotted	79.7 mm	3.138 in	Nylon	Bolt	M6x1	75 mm	2.953 in
Essentra Access Solutions 50M060100H008	Flat Head			Slotted	8 mm	0.315 in	Nylon	Machine Screw	M6x1	4.7 mm	0.185 in					0.13 in	3.3 mm
Essentra Access Solutions 50M060100T010	Knob	0.481 in	12.21 mm	Slotted	17.75 mm	0.699 in	Nylon	Thumb Screw	M6x1	10 mm	0.394 in					0.305 in	7.75 mm
Essentra Access Solutions 50M060100I025	Flat Head			Phillips	25 mm	0.984 in	Nylon	Machine Screw	M6x1			0.854 in	21.7 mm			0.13 in	3.3 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

M6x1 Flat Head Machine Screw Slotted Drive Nylon
