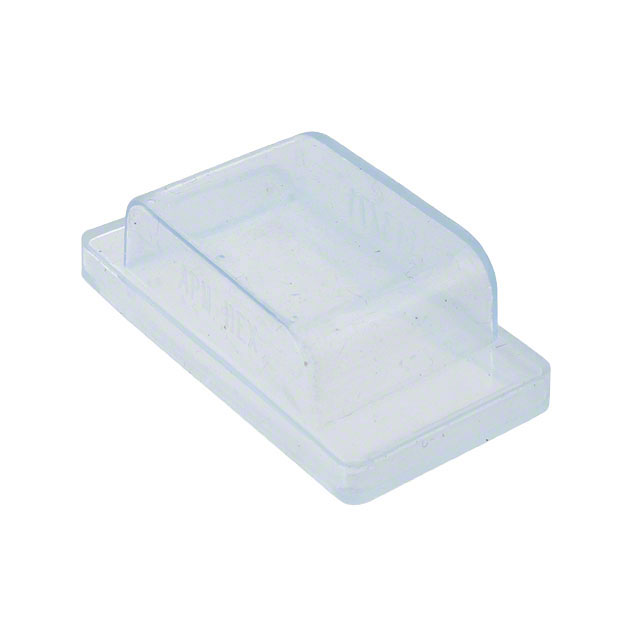

1113/71
ActiveAPM HEXSEAL
BOOT ROCKER CIRCUIT BREAKER CLR
Deep-Dive with AI
Search across all available documentation for this part.
1113/71
ActiveAPM HEXSEAL
BOOT ROCKER CIRCUIT BREAKER CLR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1113/71 | 1113 Series |
|---|---|---|
| Accessory Type | Boot | Boot |
| Color | - | Clear |
| For Use With/Related Products | Circuit Breaker | Multiple Series, Circuit Breaker |
| Ingress Protection | - | IP55 - Dust Protected, Water Resistant |
| Material | - | Silicone Rubber |
| Mounting Feature | - | Front of Panel |
| Operating Temperature | - | -62 °C |
| Operating Temperature | - | 204 °C |
| Size / Dimension | - | 1.093 - 1.75 in |
| Size / Dimension | - | 13.1 - 35.32 mm |
| Size / Dimension | - | 0.297 - 0.56 " |
| Size / Dimension | - | 0.515 - 1.39 in |
| Size / Dimension | - | 7.54 - 14.22 mm |
| Size / Dimension | - | 27.78 - 44.45 mm |
| Size / Dimension | - | 7.54 mm |
| Size / Dimension | - | 16.27 mm |
| Type | - | Rocker Boot |
1113 Series
ROCKER BOOT CLEAR
| Part | Color | Ingress Protection | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | For Use With/Related Products | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Feature | Material | Type | Accessory Type | Size / Dimension [z] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
APM HEXSEAL 1113/75 | Clear | IP55 - Dust Protected, Water Resistant | 1.437 in | 35.32 mm | 0.413 " | 1.39 in | 10.49 mm | 36.51 mm | Multiple Series | -62 °C | 204 °C | Front of Panel | Silicone Rubber | Rocker Boot | |||
APM HEXSEAL 1113/63 | Clear | IP55 - Dust Protected, Water Resistant | 1.093 in | 13.1 mm | 0.297 in | 0.515 " | 7.54 mm | 27.78 mm | Multiple Series | -62 °C | 204 °C | Front of Panel | Silicone Rubber | Rocker Boot | |||
APM HEXSEAL 1113/71 | Circuit Breaker | Boot | |||||||||||||||
APM HEXSEAL 1113/80 | Clear | IP55 - Dust Protected, Water Resistant | 1.75 " | 22.86 mm | 0.56 " | 0.9 " | 14.22 mm | 44.45 mm | Multiple Series | -62 °C | 204 °C | Front of Panel | Silicone Rubber | Rocker Boot | |||
APM HEXSEAL 1113/66 | Clear | IP55 - Dust Protected, Water Resistant | Multiple Series | -62 °C | 204 °C | Front of Panel | Silicone Rubber | Rocker Boot | |||||||||
APM HEXSEAL 1113/62 | Clear | IP55 - Dust Protected, Water Resistant | 1.093 in | 24.61 mm | 0.297 in | 0.968 in | 7.54 mm | 27.78 mm | Multiple Series | -62 °C | 204 °C | Front of Panel | Silicone Rubber | Rocker Boot | |||
APM HEXSEAL 1113/70 | Clear | IP55 - Dust Protected, Water Resistant | 1.218 " | 0.297 in | 0.64 in | 30.96 mm | Multiple Series | -62 °C | 204 °C | Front of Panel | Silicone Rubber | Rocker Boot | 7.54 mm | 16.27 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 650 | $ 3.16 | |
Description
General part information
1113 Series
BOOT ROCKER CIRCUIT BREAKER CLR
