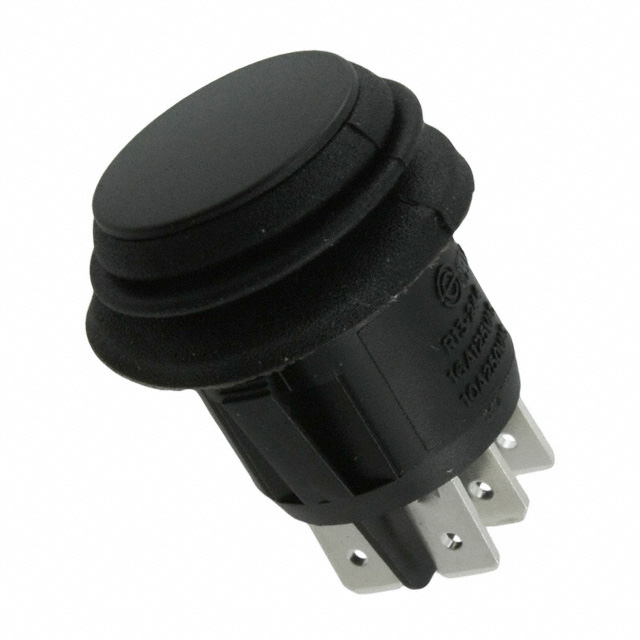

GRB244D802BB

Active

CW Industries

SWITCH ROCKER DPDT 16A 125V

Search across all available documentation for this part.

Active

CW Industries

SWITCH ROCKER DPDT 16A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	GRB244D802BB

Actuator Marking	No Marking
Actuator Type	Round
Approval Agency	cULus
Circuit	DPDT
Color - Actuator/Cap	Black
Current Rating (Amps)	16 A
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	100000 Cycles
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	20.2 mm
Switch Function	On-Off-On
Termination Style	Quick Connect - 0.187" (4.7mm)
Voltage Rating - AC	125 V

Part	Actuator Type	Termination Style	Color - Actuator/Cap	Actuator Marking	Panel Cutout Dimensions [diameter]	Voltage Rating - AC	Mounting Type	Switch Function	Circuit	Mechanical Life	Approval Agency	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)
CW Industries GRB244D802BB	Round	Quick Connect - 0.187" (4.7mm)	Black	No Marking	20.2 mm	125 V	Panel Mount Snap-In	On-Off-On	DPDT	100000 Cycles	cULus	IP65 - Dust Tight Water Resistant	-25 °C	85 °C	16 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch DPDT 16A (AC) 125 V Panel Mount, Snap-In
