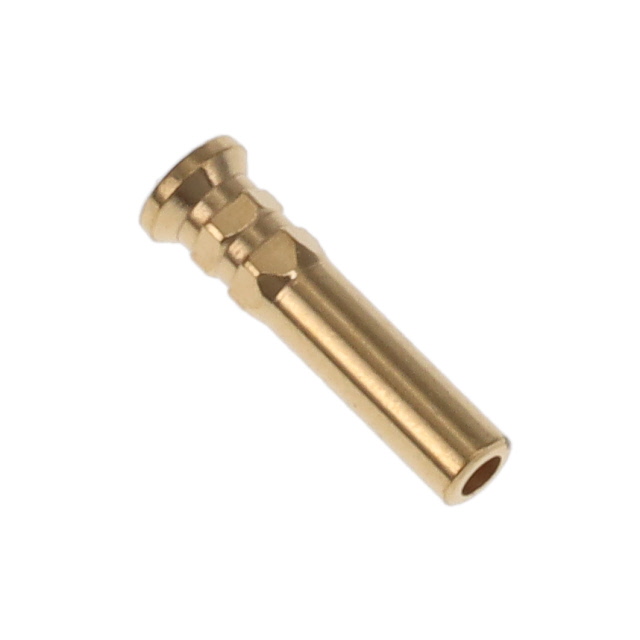

5530-0-15-15-10-27-10-0
ActiveMill-Max Manufacturing Corp.
PRESS-FIT RECEPTACLE FOR PLATED
Deep-Dive with AI
Search across all available documentation for this part.
5530-0-15-15-10-27-10-0
ActiveMill-Max Manufacturing Corp.
PRESS-FIT RECEPTACLE FOR PLATED
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 5530-0-15-15-10-27-10-0 |
|---|---|
| Accepts Pin Diameter [Max] | 0.017 in |
| Accepts Pin Diameter [Max] | 0.43 mm |
| Accepts Pin Diameter [Min] | 0.3 mm |
| Accepts Pin Diameter [Min] | 0.012 in |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Beryllium Copper |
| Flange Diameter [diameter] | 1.4 mm |
| Flange Diameter [diameter] | 0.055 in |
| Length - Overall [x] | 4.8 mm |
| Length - Overall [x] | 0.189 in |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pin Hole Diameter [diameter] | 0.028 in |
| Pin Hole Diameter [diameter] | 0.71 mm |
| Socket Depth | 2.79 mm |
| Socket Depth | 0.11 " |
| Tail Type | No Tail |
| Termination | Press-Fit, Hex |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.71 | |
| 10 | $ 3.37 | |||
| 25 | $ 3.19 | |||
| 50 | $ 3.12 | |||
| 100 | $ 2.97 | |||
| 250 | $ 2.60 | |||
| 500 | $ 2.53 | |||
Description
General part information
5530-0 Series
Pin Receptacle Connector 0.012" ~ 0.017" (0.30mm ~ 0.43mm) No Tail Press-Fit, Hex
