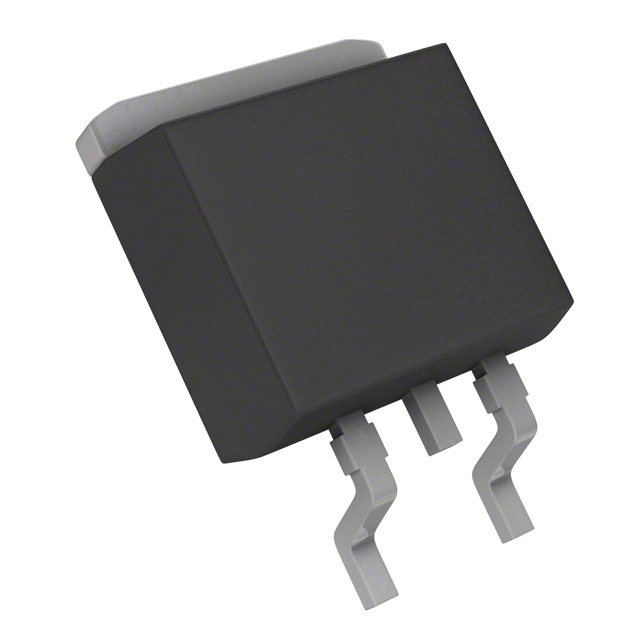

IKD10N60RFATMA1

Active

Infineon Technologies

600 V, 10 A FAST SWITCHING RC DRIVES IGBT WITH ANTI-PARALLEL DIODE IN TO252 HOUSING. WITH A SWITCHING FREQUENCY RANGE FROM 4 KHZ TO 30 KHZ IT PERFECTLY MATCHES APPLICATIONS LIKE FREQUENCY CONVERTER, MOTOR CONTROL AND DRIVES OR UNINTERRUPTIBLE POWER SUPPLY.

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

IKD10N60RFATMA1

Active

Infineon Technologies

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IKD10N60RFATMA1

Current - Collector (Ic) (Max)	20 A
Current - Collector Pulsed (Icm)	30 A
Gate Charge	64 nC
IGBT Type	Trench Field Stop
Mounting Type	Surface Mount
Operating Temperature [Max]	175 °C
Operating Temperature [Min]	-40 C
Package / Case	SC-63, DPAK (2 Leads + Tab), TO-252-3
Power - Max [Max]	150 W
Reverse Recovery Time (trr)	72 ns
Supplier Device Package	PG-TO252-3
Switching Energy	190 µJ, 160 µJ
Td (on/off) @ 25°C	12 ns
Td (on/off) @ 25°C	168 ns
Test Condition	10 A, 15 V, 400 V, 26 Ohm
Vce(on) (Max) @ Vge, Ic	2.5 V
Voltage - Collector Emitter Breakdown (Max) [Max]	600 V

IKD10N Series

Part	Voltage - Collector Emitter Breakdown (Max) [Max]	Vce(on) (Max) @ Vge, Ic	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Test Condition	Switching Energy	Power - Max [Max]	Reverse Recovery Time (trr)	Current - Collector (Ic) (Max)	Current - Collector Pulsed (Icm)	IGBT Type	Supplier Device Package	Mounting Type	Gate Charge	Td (on/off) @ 25°C	Td (on/off) @ 25°C	Current - Collector (Ic) (Max) [Max]
Infineon Technologies IKD10N60RFATMA1	600 V	2.5 V	-40 C	175 °C	DPAK (2 Leads + Tab) SC-63 TO-252-3	10 A 15 V 26 Ohm 400 V	160 µJ 190 µJ	150 W	72 ns	20 A	30 A	Trench Field Stop	PG-TO252-3	Surface Mount	64 nC	12 ns	168 ns
Infineon Technologies IKD10N60RAATMA2	600 V	2.1 V	-40 C	175 °C	DPAK (2 Leads + Tab) SC-63 TO-252-3	10 A 15 V 23 Ohm 400 V		150 W	62 ns	20 A	30 A	Trench	PG-TO252-3	Surface Mount	64 nC
Infineon Technologies IKD10N60RATMA1	600 V	2.1 V	-40 C	175 °C	DPAK (2 Leads + Tab) SC-63 TO-252-3	10 A 15 V 23 Ohm 400 V	210 µJ 380 µJ	150 W		20 A	30 A	Trench Field Stop	PG-TO252-3	Surface Mount	64 nC
Infineon Technologies IKD10N60RC2ATMA1	600 V	2.3 V	-40 C	175 °C	DPAK (2 Leads + Tab) SC-63 TO-252-3	10 A 15 V 49 Ohm 400 V	170 µJ 320 µJ	79 W	104 ns		30 A	Trench Field Stop	PG-TO252-3	Surface Mount		14 ns 250 ns		18.8 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.63
		10	$ 1.33
		100	$ 1.04
		500	$ 0.88
		1000	$ 0.72
	Digi-Reel®	1	$ 1.63
		10	$ 1.33
		100	$ 1.04
		500	$ 0.88
		1000	$ 0.72
	Tape & Reel (TR)	2500	$ 0.61
Newark	Each (Supplied on Cut Tape)	1	$ 1.70
		10	$ 1.27
		25	$ 1.15
		50	$ 1.03
		100	$ 0.92
		250	$ 0.83
		500	$ 0.74
		1000	$ 0.68

Description

General part information

IKD10N Series

The RC-Drives 600 V, 10 A hard-switching IGBT3 with monolithically integrated reverse conducting diode in a TO252 package, has been developed by Infineon as a cost optimized solution for consumer drives market. This basic technology provides outstanding performance for permanent magnet synchronous and brushless DC motor drives.
