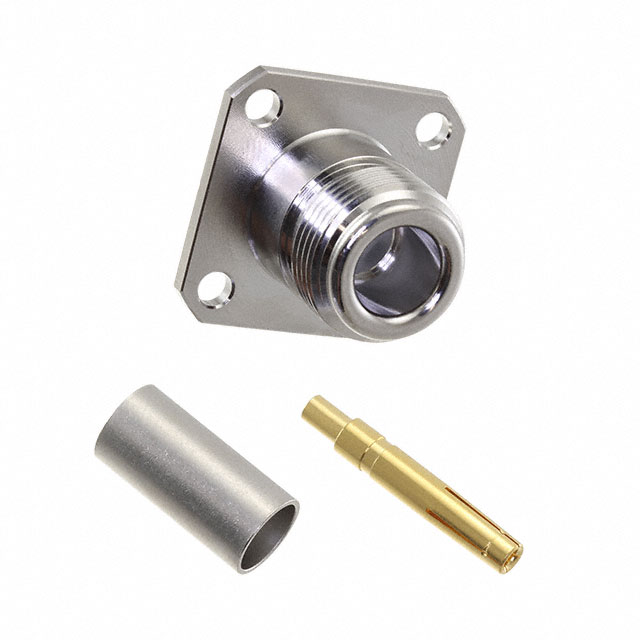

53K407-108N5

Active

Rosenberger

CONN N TYPE JACK STR 50OHM CRIMP

Search across all available documentation for this part.

Active

Rosenberger

CONN N TYPE JACK STR 50OHM CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	53K407-108N5

Body Finish	White Bronze
Body Material	Brass
Cable Group	223, 400
Cable Group	RG-142B
Center Contact Material	Bronze
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Female Socket, Jack
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Ferrule, 1 Contact, 1 Connector
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Connector Style	Housing Color	Cable Group	Cable Group	Shield Termination	Connector Type	Voltage Rating	Frequency - Max [Max]	Mounting Feature	Contact Termination	Impedance	Center Contact Material	Dielectric Material	Body Material	Number of Ports	Center Contact Plating	Mating Cycles	Includes	Body Finish
Rosenberger 53K407-108N5	155 °C	-55 °C	N Type	Silver	223 400	RG-142B	Crimp	Female Socket Jack	500 V	11 GHz	Flange	Crimp	50 Ohms	Bronze	Polytetrafluoroethylene (PTFE)	Brass	1	Gold	500	1 Connector 1 Contact 1 Ferrule	White Bronze
Rosenberger 53K407-106N5	155 °C	-55 °C	N Type	Silver	141	RG-58C	Crimp	Female Socket Jack	500 V	11 GHz	Flange	Crimp	50 Ohms	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Brass	1	Gold	500	1 Connector 1 Contact 1 Ferrule	White Bronze

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

N Type Connector Jack, Female Socket 50 Ohms Panel Mount Crimp
