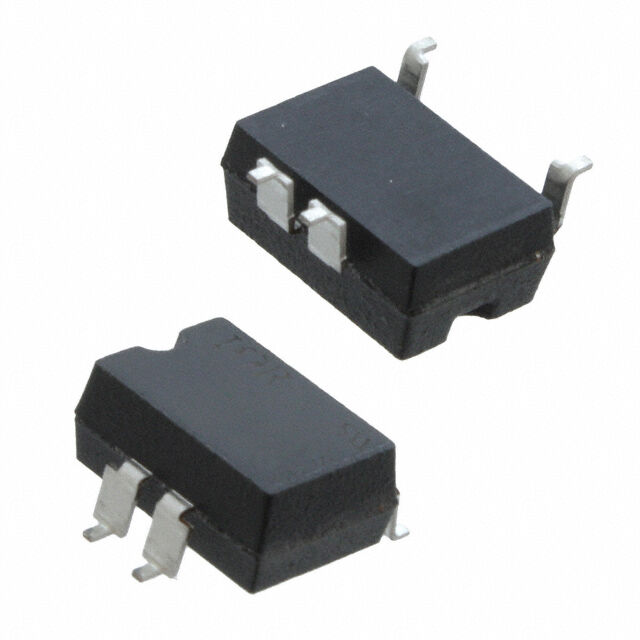

PVD1354NS

Obsolete

Infineon Technologies

SSR RELAY SPST-NO 550MA 0-100V

Search across all available documentation for this part.

Obsolete

Infineon Technologies

SSR RELAY SPST-NO 550MA 0-100V

Technical Specifications

Parameters and characteristics for this part

Part	Package / Case [x]	Package / Case [x]	Package / Case	Output Type	Voltage - Load [Max]	On-State Resistance (Max) [Max]	Approval Agency	Voltage - Input	Load Current	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Termination Style	Package / Case	Package / Case
Infineon Technologies PVD1354NS	0.3 "	7.62 mm	4 Leads 8-SMD	DC	100 V	1.5 Ohms	UL	1.2 VDC	550 mA	Surface Mount	85 °C	-40 °C	8-SMD	Gull Wing
Infineon Technologies PVD1354NPBF			8-DIP	DC	100 V	1.5 Ohms	UL	1.2 VDC	550 mA	Through Hole	85 °C	-40 °C	8-DIP Modified	PC Pin	7.62 mm	0.3 in
Infineon Technologies PVD1352			8-DIP	DC	100 V	1.5 Ohms	UL	1.2 VDC	500 mA	Through Hole	85 °C	-40 °C	8-DIP Modified	PC Pin	7.62 mm	0.3 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Solid State SPST-NO (1 Form A) 8-SMD (0.300", 7.62mm), 4 Leads

Technical documentation and resources

No documents available
