R125055000W

Active

Radiall USA, Inc.

SMA / STRAIGHT PLUG SOLDER TYPE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

R125055000W

Active

Radiall USA, Inc.

SMA / STRAIGHT PLUG SOLDER TYPE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R125055000W

Body Finish	Gold
Body Material	Stainless Steel
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	26.5 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	500 V

R12505 Series

Part	Connector Style	Body Material	For Use With/Related Products	Color	Body Finish	Impedance	Operating Temperature [Min]	Operating Temperature [Max]	Housing Color	Contact Termination	Shield Termination	Mating Cycles	Dielectric Material	Frequency - Max [Max]	Number of Ports	Center Contact Plating	Voltage Rating	Mounting Type	Connector Type	Center Contact Material	Cable Group
Radiall USA, Inc. R125054901W	SMA	Stainless Steel	SMA Plugs	Silver
Radiall USA, Inc. R125054500	SMA	Stainless Steel	SMA Plugs	Gold	Gold
Radiall USA, Inc. R125055000W	SMA	Stainless Steel			Gold	50 Ohms	-65 ░C	105 ░C	Gold	Solder	Solder	500	Polytetrafluoroethylene (PTFE)	26.5 GHz	1	Gold	500 V	Free Hanging (In-Line)	Male Pin Plug	Brass
Radiall USA, Inc. R125053901W	SMA	Stainless Steel				50 Ohms	-65 ░C	105 ░C	Silver	Crimp	Crimp	500		18 GHz	1		500 V	Free Hanging (In-Line)	Male Pin Plug
Radiall USA, Inc. R125054901	SMA	Stainless Steel				50 Ohms	-65 ░C	105 ░C		Crimp	Crimp	500	Polytetrafluoroethylene (PTFE)	18 GHz	1	Gold	500 V	Free Hanging (In-Line)	Male Pin Plug	Brass
Radiall USA, Inc. R125054500W	SMA	Stainless Steel	SMA Plugs	Gold	Gold
Radiall USA, Inc. R125052500	SMA	Stainless Steel			Gold	50 Ohms	-65 ░C	105 ░C	Gold	Solder	Solder	500	Polytetrafluoroethylene (PTFE)	18 GHz	1	Gold	335 V	Free Hanging (In-Line)	Male Pin Plug	Brass	RG-405 (.085" Semi Rigid)
Radiall USA, Inc. R125054000W	SMA	Stainless Steel	SMA Plugs	Gold	Gold
Radiall USA, Inc. R125052000W	SMA	Stainless Steel			Gold	50 Ohms	-65 ░C	105 ░C	Gold	Solder	Solder	500	Polytetrafluoroethylene (PTFE)	18 GHz	1	Gold	335 V	Free Hanging (In-Line)	Male Pin Plug	Brass	RG-405 (.085" Semi Rigid)
Radiall USA, Inc. R125052900W	SMA	Stainless Steel			Gold	50 Ohms	-65 ░C	105 ░C	Gold	Crimp	Crimp	500	Polytetrafluoroethylene (PTFE)	18 GHz	1	Gold	335 V	Free Hanging (In-Line)	Male Pin Plug	Beryllium Copper	RG-405 (.085" Semi Rigid)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 12.49
		10	$ 11.07
		25	$ 10.64
		50	$ 10.22
		100	$ 9.65
		250	$ 8.80
		500	$ 8.23
		1000	$ 7.55

Description

General part information

R12505 Series

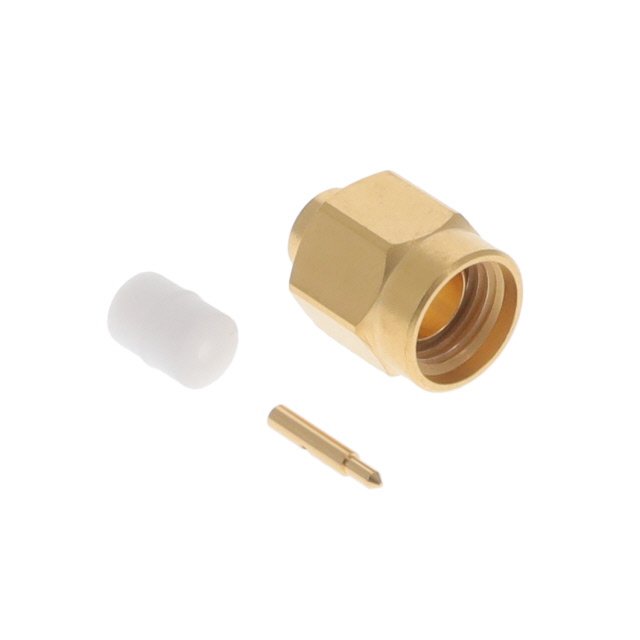

SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
