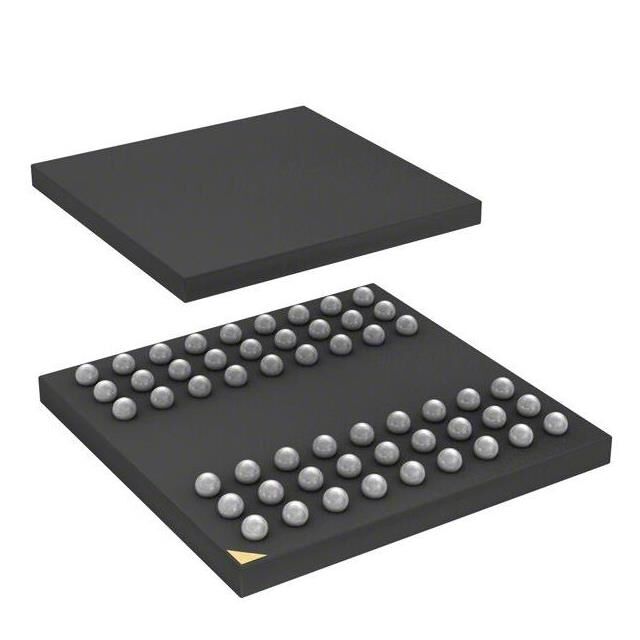

NDS36PBA-16ET

Active

Insignis Technology Corporation

IC DRAM 256MBIT LVTTL 54FBGA

Search across all available documentation for this part.

Active

Insignis Technology Corporation

IC DRAM 256MBIT LVTTL 54FBGA

Technical Specifications

Parameters and characteristics commom to parts in this series

IC DRAM 256MBIT LVTTL 54TSOPII

Part	Supplier Device Package	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Memory Organization	Memory Size	Technology	Memory Interface	Memory Type	Write Cycle Time - Word, Page	Voltage - Supply [Max]	Voltage - Supply [Min]	Clock Frequency	Memory Format	Access Time	Package / Case
Insignis Technology Corporation NDS36PT5-16ET TR	54-TSOP II	Surface Mount	70 °C	0 °C	16 M	256 Gbit	SDRAM	LVTTL	Volatile	12 ns	3.6 V	3 V	166 MHz	DRAM
Insignis Technology Corporation NDS36PT5-16AT	54-TSOP II	Surface Mount	105 °C	-40 °C	16 M	256 Gbit	SDRAM	LVTTL	Volatile	12 ns	3.6 V	3 V	166 MHz	DRAM	5 ns
Insignis Technology Corporation NDS36PT5-20IT	54-TSOP II	Surface Mount	85 °C	-40 °C	16 M	256 Gbit	SDRAM	LVTTL	Volatile	10 ns	3.6 V	3 V	200 MHz	DRAM	4.5 ns
Insignis Technology Corporation NDS36PBA-16ET	54-FBGA (8x8)	Surface Mount	70 °C	0 °C	16 M	256 Gbit	SDRAM	LVTTL	Volatile		3.6 V	3 V	166 MHz	DRAM		54-TFBGA
Insignis Technology Corporation NDS36PBA-16ET TR	54-FBGA (8x8)	Surface Mount	70 °C	0 °C	16 M	256 Gbit	SDRAM	LVTTL	Volatile		3.6 V	3 V	166 MHz	DRAM		54-TFBGA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SDRAM Memory IC 256Mbit LVTTL 166 MHz 54-FBGA (8x8)

Technical documentation and resources
