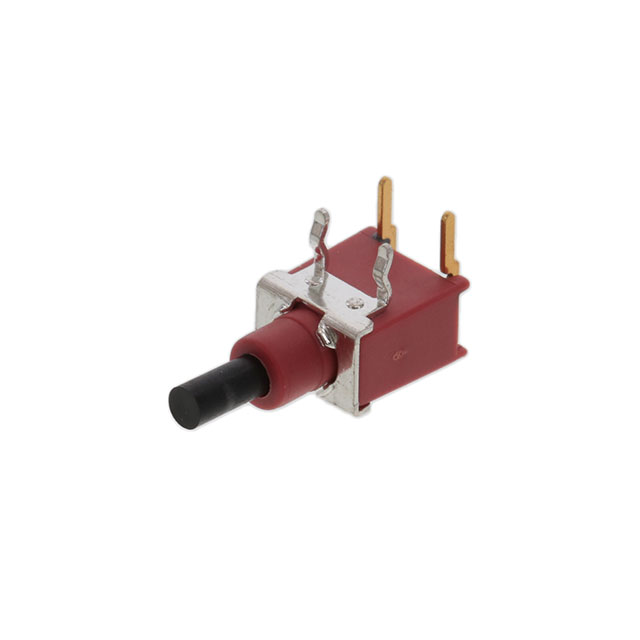

800AWSP9M61RE

Active

E-Switch

SWITCH PUSH SPST-NO 0.4VA 20V

Search across all available documentation for this part.

Active

E-Switch

SWITCH PUSH SPST-NO 0.4VA 20V

Technical Specifications

Parameters and characteristics for this part

Part	Termination Style	Circuit	Voltage Rating - DC	Current Rating (Amps)	Ingress Protection	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Type	Switch Function	Mounting Type	Electrical Life	Color - Actuator/Cap	Actuator Marking	Voltage Rating - AC	Features
E-Switch 800AWSP9M61RE	PC Pin	SPST-NO	20 V	0.4 VA	IP67 - Dust Tight Waterproof	Round Plunger	-30 ░C	85 °C	Standard	Off-Mom	Through Hole Right Angle	50000 Cycles	Black	No Marking	20 V	Epoxy Sealed Terminals
E-Switch 800AWSP9M6QE	PC Pin	SPST-NO		1 A	IP67 - Dust Tight Waterproof	Round Plunger	-30 ░C	85 °C	Standard	Off-Mom	Through Hole Right Angle	50000 Cycles	Black	No Marking	120 V	Epoxy Sealed Terminals
E-Switch 800AWSP9M6RE	PC Pin	SPST-NO	20 V	0.4 VA	IP67 - Dust Tight Waterproof	Round Plunger	-30 ░C	85 °C	Standard	Off-Mom	Through Hole Right Angle	50000 Cycles	Black	No Marking	20 V	Epoxy Sealed Terminals
E-Switch 800AWSP9M61QE	PC Pin	SPST-NO		1 A	IP67 - Dust Tight Waterproof	Round Plunger	-30 ░C	85 °C	Standard	Off-Mom	Through Hole Right Angle	50000 Cycles	Black	No Marking	120 V	Epoxy Sealed Terminals

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Standard Through Hole, Right Angle

Technical documentation and resources

No documents available
