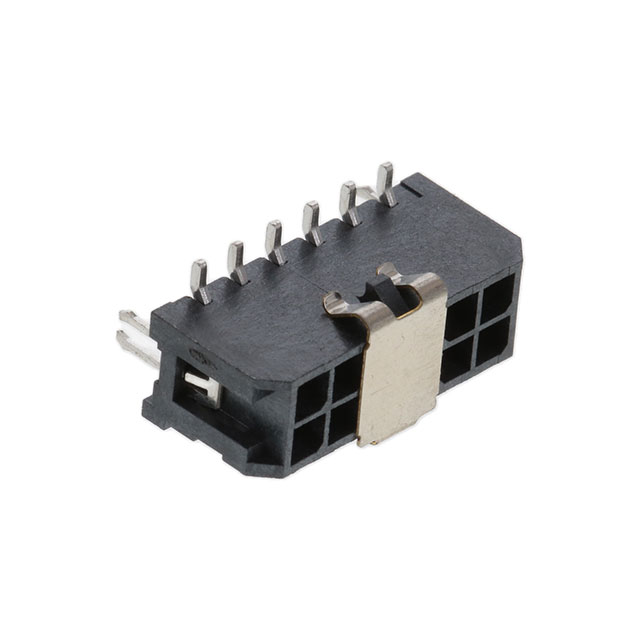

DML-12-A-V-T-SMT-BL-PP-T/R
ActiveAdam Tech
CONN HEADER SMD 12POS 3MM
Deep-Dive with AI
Search across all available documentation for this part.
DML-12-A-V-T-SMT-BL-PP-T/R
ActiveAdam Tech
CONN HEADER SMD 12POS 3MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DML-12-A-V-T-SMT-BL-PP-T/R |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 5 A |
| Fastening Type | Locking Ramp |
| Insulation Color | Black |
| Insulation Height [z] | 9.91 mm |
| Insulation Height [z] | 0.39 in |
| Insulation Material | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 12 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Pitch - Mating | 0.118 in |
| Pitch - Mating | 3 mm |
| Row Spacing - Mating | 3 mm |
| Row Spacing - Mating | 0.118 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 250 VAC |
DML-12 Series
| Part | Row Spacing - Mating | Row Spacing - Mating | Contact Finish - Post | Voltage Rating | Mounting Type | Material Flammability Rating | Connector Type | Pitch - Mating | Pitch - Mating | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Height [z] | Insulation Height [z] | Termination | Fastening Type | Style | Shrouding | Contact Shape | Insulation Material | Number of Positions | Number of Rows | Insulation Color | Contact Material | Number of Positions Loaded | Current Rating (Amps) | Features | Insulation Height | Insulation Height | Contact Length - Post [x] | Contact Length - Post [x] | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Adam Tech | 3 mm | 0.118 in | Tin | 250 VAC | Surface Mount | UL94 V-0 | Header | 0.118 in | 3 mm | Male Pin | -25 °C | 85 °C | 9.91 mm | 0.39 in | Solder | Locking Ramp | Board to Cable/Wire | Shrouded - 4 Wall | Square | Thermoplastic | 12 | 2 | Black | Brass | All | 5 A | ||||||
Adam Tech | 3 mm | 0.118 in | Tin | 250 VAC | Surface Mount | UL94 V-0 | Header | 0.118 in | 3 mm | Male Pin | -25 °C | 105 ░C | 9.91 mm | 0.39 in | Solder | Locking Ramp | Board to Cable/Wire | Shrouded - 4 Wall | Square | Thermoplastic | 12 | 2 | Black | Brass | All | 5 A | Solder Retention | |||||
Adam Tech | 3 mm | 0.118 in | Tin | 250 VAC | Surface Mount Right Angle | UL94 V-0 | Header | 0.118 in | 3 mm | Male Pin | -25 °C | 85 °C | Solder | Locking Ramp | Board to Cable/Wire | Shrouded - 4 Wall | Square | Thermoplastic | 12 | 2 | Natural | Brass | All | 5 A | Solder Retention | 0.289 " | 7.34 mm | |||||
Adam Tech | 3 mm | 0.118 in | Tin | 250 VDC | Through Hole Right Angle | UL94 V-0 | Header | 0.118 in | 3 mm | Male Pin | Solder | Locking Ramp | Board to Cable/Wire | Shrouded - 4 Wall | Square | Thermoplastic | 12 | 2 | Black | Brass | All | 0.27 " | 6.86 mm | 3.18 mm | 0.125 in | Varies by Wire Gauge | ||||||
Adam Tech | 3 mm | 0.118 in | Tin | 250 VDC | Through Hole | UL94 V-0 | Header | 0.118 in | 3 mm | Male Pin | -45 °C | 125 °C | 9.91 mm | 0.39 in | Kinked Pin Solder | Locking Ramp | Board to Cable/Wire | Shrouded - 4 Wall | Square | Thermoplastic | 12 | 2 | Black | Brass | All | Board Guide | 3.18 mm | 0.125 in | Varies by Wire Gauge |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.66 | |
| Digi-Reel® | 1 | $ 2.66 | ||
| Tape & Reel (TR) | 5100 | $ 1.05 | ||
Description
General part information
DML-12 Series
Connector Header Surface Mount 12 position 0.118" (3.00mm)
