EF12.0035.1110.01

Active

SCHURTER Inc.

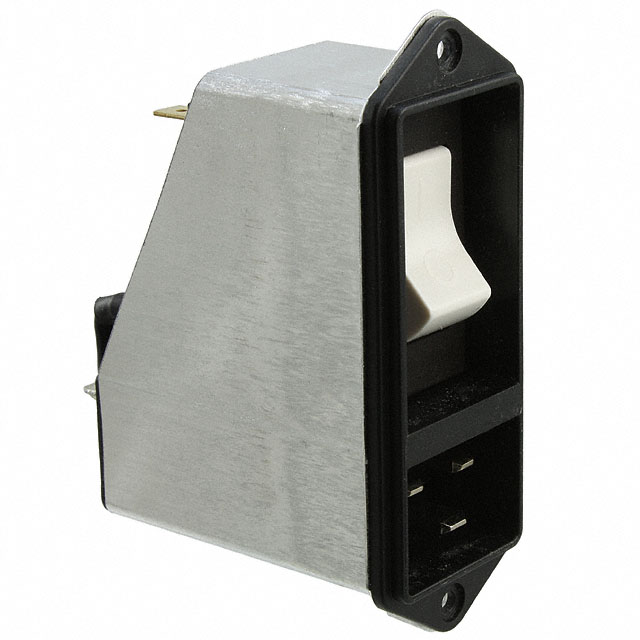

PWR ENT MOD RCPT IEC320-C20 PNL

Search across all available documentation for this part.

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C20 PNL

Technical Specifications

Parameters and characteristics for this part

Specification	EF12.0035.1110.01

Accomodates a Fuse	False
Approval Agency	cURus, ENEC
Connector Style	IEC 320-C20
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A
Current Rating - Circuit Breaker	20 A
Features	Shielded
Filter Type	Filtered (EMI, RFI) - Commercial
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Flange
Panel Cutout Dimensions [x]	33.9 mm
Panel Cutout Dimensions [y]	81 mm
Switch Features	Circuit Breaker, Switch On-Off
Termination	0.25 in
Termination	6.3 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

PWR ENT MOD RCPT IEC320-C20 PNL

Part	Accomodates a Fuse	Ingress Protection	Features	Connector Type	Approval Agency	Filter Type	Switch Features	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Current Rating - Appliance Inlet	Mounting Type	Material Flammability Rating	Voltage Rating - Appliance Inlet	Current Rating - Circuit Breaker	Termination	Termination	Termination	Connector Style
SCHURTER Inc. EF12.0035.1110.01		IP40	Shielded	Receptacle, Male Blades - Module	cURus, ENEC	Filtered (EMI, RFI) - Commercial	Circuit Breaker, Switch On-Off	81 mm	33.9 mm	10 A	Flange, Panel Mount	UL94 V-0	250 VAC	20 A	0.25 in	6.3 mm	Quick Connect	IEC 320-C20

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C20 Panel Mount, Flange
