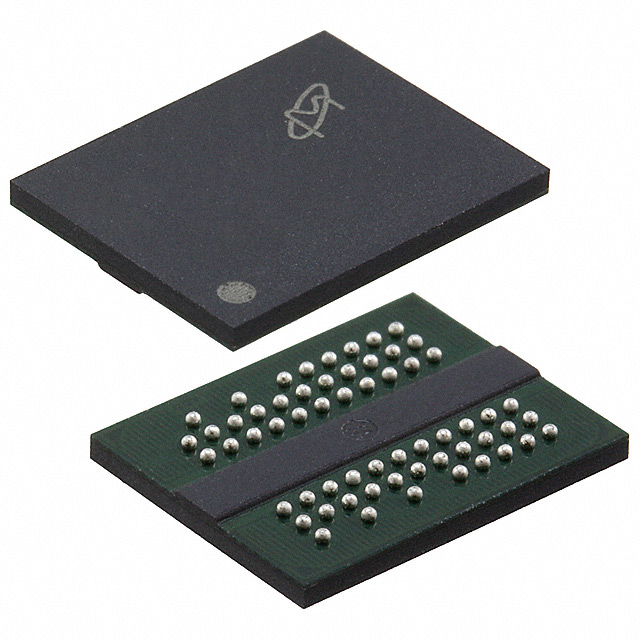

MT47H256M8EB-25E:C

Active

Micron Technology Inc.

DDR DRAM, 256MX8, 0.4NS, CMOS, PBGA60, 9 X 11.50 MM, ROHS COMPLIANT, FBGA-60

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MT47H256M8EB-25E:C

Active

Micron Technology Inc.

DDR DRAM, 256MX8, 0.4NS, CMOS, PBGA60, 9 X 11.50 MM, ROHS COMPLIANT, FBGA-60

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MT47H256M8EB-25E:C

Access Time	400 ps
Clock Frequency	400 MHz
Memory Format	DRAM
Memory Interface	Parallel
Memory Organization	256M x 8
Memory Size	2 Gbit
Memory Type	Volatile
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	0 °C
Package / Case	60-TFBGA
Supplier Device Package	60-FBGA (9x11.5)
Technology	SDRAM - DDR2
Voltage - Supply [Max]	1.9 V
Voltage - Supply [Min]	1.7 V
Write Cycle Time - Word, Page	15 ns

MT47H256M8 Series

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Access Time	Memory Type	Memory Organization	Package / Case	Write Cycle Time - Word, Page	Memory Interface	Technology	Supplier Device Package	Memory Size	Clock Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Memory Format	Mounting Type	Grade	Qualification
Micron Technology Inc. MT47H256M8EB-25E:C	1.9 V	1.7 V	400 ps	Volatile	256M x 8	60-TFBGA	15 ns	Parallel	SDRAM - DDR2	60-FBGA (9x11.5)	2 Gbit	400 MHz	85 °C	0 °C	DRAM	Surface Mount
Micron Technology Inc. MT47H256M8EB-25E AIT:C	1.9 V	1.7 V	400 ps	Volatile	256M x 8	60-TFBGA	15 ns	Parallel	SDRAM - DDR2	60-FBGA (9x11.5)	2 Gbit	400 MHz	95 °C	-40 °C	DRAM	Surface Mount	Automotive	AEC-Q100
Micron Technology Inc. MT47H256M8EB-187E:C TR	1.9 V	1.7 V	350 ps	Volatile	256M x 8	60-TFBGA	15 ns	Parallel	SDRAM - DDR2	60-FBGA (9x11.5)	2 Gbit	533 MHz	85 °C	0 °C	DRAM	Surface Mount
Micron Technology Inc. MT47H256M8EB-3:C	1.9 V	1.7 V	450 ps	Volatile	256M x 8	60-TFBGA	15 ns	Parallel	SDRAM - DDR2	60-FBGA (9x11.5)	2 Gbit	333 MHz	85 °C	0 °C	DRAM	Surface Mount
Micron Technology Inc. MT47H256M8EB-25E AIT:C TR	1.9 V	1.7 V	400 ps	Volatile	256M x 8	60-TFBGA	15 ns	Parallel	SDRAM - DDR2	60-FBGA (9x11.5)	2 Gbit	400 MHz	95 °C	-40 °C	DRAM	Surface Mount	Automotive	AEC-Q100
Micron Technology Inc. MT47H256M8EB-187E:C	1.9 V	1.7 V	350 ps	Volatile	256M x 8	60-TFBGA	15 ns	Parallel	SDRAM - DDR2	60-FBGA (9x11.5)	2 Gbit	533 MHz	85 °C	0 °C	DRAM	Surface Mount
Micron Technology Inc. MT47H256M8EB-25E:C TR	1.9 V	1.7 V	400 ps	Volatile	256M x 8	60-TFBGA	15 ns	Parallel	SDRAM - DDR2	60-FBGA (9x11.5)	2 Gbit	400 MHz	85 °C	0 °C	DRAM	Surface Mount
Micron Technology Inc. MT47H256M8THN-25E:M	1.9 V	1.7 V	400 ps	Volatile	256M x 8	63-TFBGA	15 ns	Parallel	SDRAM - DDR2	63-FBGA (8x10)	2 Gbit	400 MHz	85 °C	0 °C	DRAM	Surface Mount
Micron Technology Inc. MT47H256M8THN-25E:H TR	1.9 V	1.7 V	400 ps	Volatile	256M x 8	63-TFBGA	15 ns	Parallel	SDRAM - DDR2	63-FBGA (8x10)	2 Gbit	400 MHz	85 °C	0 °C	DRAM	Surface Mount
Micron Technology Inc. MT47H256M8EB-25E XIT:C	1.9 V	1.7 V	400 ps	Volatile	256M x 8	60-TFBGA	15 ns	Parallel	SDRAM - DDR2	60-FBGA (9x11.5)	2 Gbit	400 MHz	95 °C	-40 °C	DRAM	Surface Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 12.65
		10	$ 11.23
		25	$ 10.71
		40	$ 10.46
		80	$ 10.09
		230	$ 9.55
		440	$ 9.51

Description

General part information

MT47H256M8 Series

SDRAM - DDR2 Memory IC 2Gbit Parallel 400 MHz 400 ps 60-FBGA (9x11.5)
