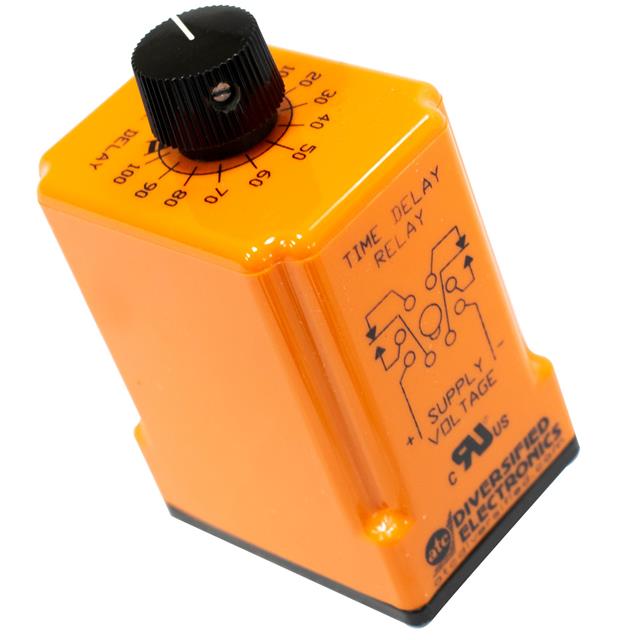

TDT-240-AKA-200

Obsolete

ATC-Diversified Electronics

RELAY TIME DELAY 200SEC 10A 250V

Search across all available documentation for this part.

Obsolete

ATC-Diversified Electronics

RELAY TIME DELAY 200SEC 10A 250V

Technical Specifications

Parameters and characteristics for this part

RELAY TIME DELAY 200SEC 10A 250V

Part	Timing Adjustment Method	Contact Rating @ Voltage	Relay Type	Circuit	Delay Time [Min]	Delay Time [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type	Termination Style	Timing Initiate Method	Function
ATC-Diversified Electronics TDT-240-AKA-200	Hand Dial	10 A	Mechanical Relay	DPDT (2 Form C)	2 s	200 Sec	240 VAC	208 VAC	Socketable	Plug In, 8 Pin (Octal)	Input Voltage	Off-Delay

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Off-Delay Time Delay Relay DPDT (2 Form C) 2 Sec ~ 200 Sec Delay 10A @ 250VAC/24VDC Socketable
