Specification	1776244-7

Clamp Material - Plating	Steel, Stainless
Color	Blue
Contact Material	Brass
Current	10 A
Features	Interlocking (Side)
Housing Material	Nylon 6/6, Polyamide, PA66
Mating Orientation	Horizontal with Board
Mounting Type	Through Hole
Number of Levels	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Pitch	0.197 in
Plating	Tin Plated
Positions Per Level	7
Screw Material	Galvanized, Steel
Screw Plating	Chromate Plated
Screw Thread	M2.6
Torque - Screw	0.51 Nm
Voltage	300 V
Wire Gauge (AWG) (Max)	22 AWG
Wire Gauge (AWG) (Min)	14 AWG
Wire Termination	Wire Guard, Screw, Leaf Spring

1776244 Series

Part	Contact Material	Plating	Screw Plating	Screw Material	Torque - Screw	Housing Material	Clamp Material - Plating	Screw Thread	Operating Temperature (Min)	Operating Temperature (Max)	Current	Number of Levels	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Pitch	Mating Orientation	Voltage	Mounting Type	Wire Termination	Color	Positions Per Level	Features
TE Connectivity AMP Connectors 1776244-7	Brass	Tin Plated	Chromate Plated	Galvanized Steel	0.51 Nm	Nylon 6/6 PA66 Polyamide	Steel Stainless	M2.6	-55 °C	105 °C	10 A	1	14 AWG	22 AWG	0.197 in	Horizontal with Board	300 V	Through Hole	Leaf Spring Screw Wire Guard	Blue	7	Interlocking (Side)
TE Connectivity AMP Connectors 1776244-3	Brass	Tin Plated	Chromate Plated	Galvanized Steel	0.51 Nm	Nylon 6/6 PA66 Polyamide	Steel Stainless	M2.6	-55 °C	105 °C	10 A	1	14 AWG	22 AWG	0.197 in	Horizontal with Board	300 V	Through Hole	Leaf Spring Screw Wire Guard	Blue	3	Interlocking (Side)
TE Connectivity AMP Connectors 1776244-6	Brass	Tin Plated	Chromate Plated	Galvanized Steel	0.51 Nm	Nylon 6/6 PA66 Polyamide	Steel Stainless	M2.6	-55 °C	105 °C	10 A	1	14 AWG	22 AWG	0.197 in	Horizontal with Board	300 V	Through Hole	Leaf Spring Screw Wire Guard	Blue	6	Interlocking (Side)

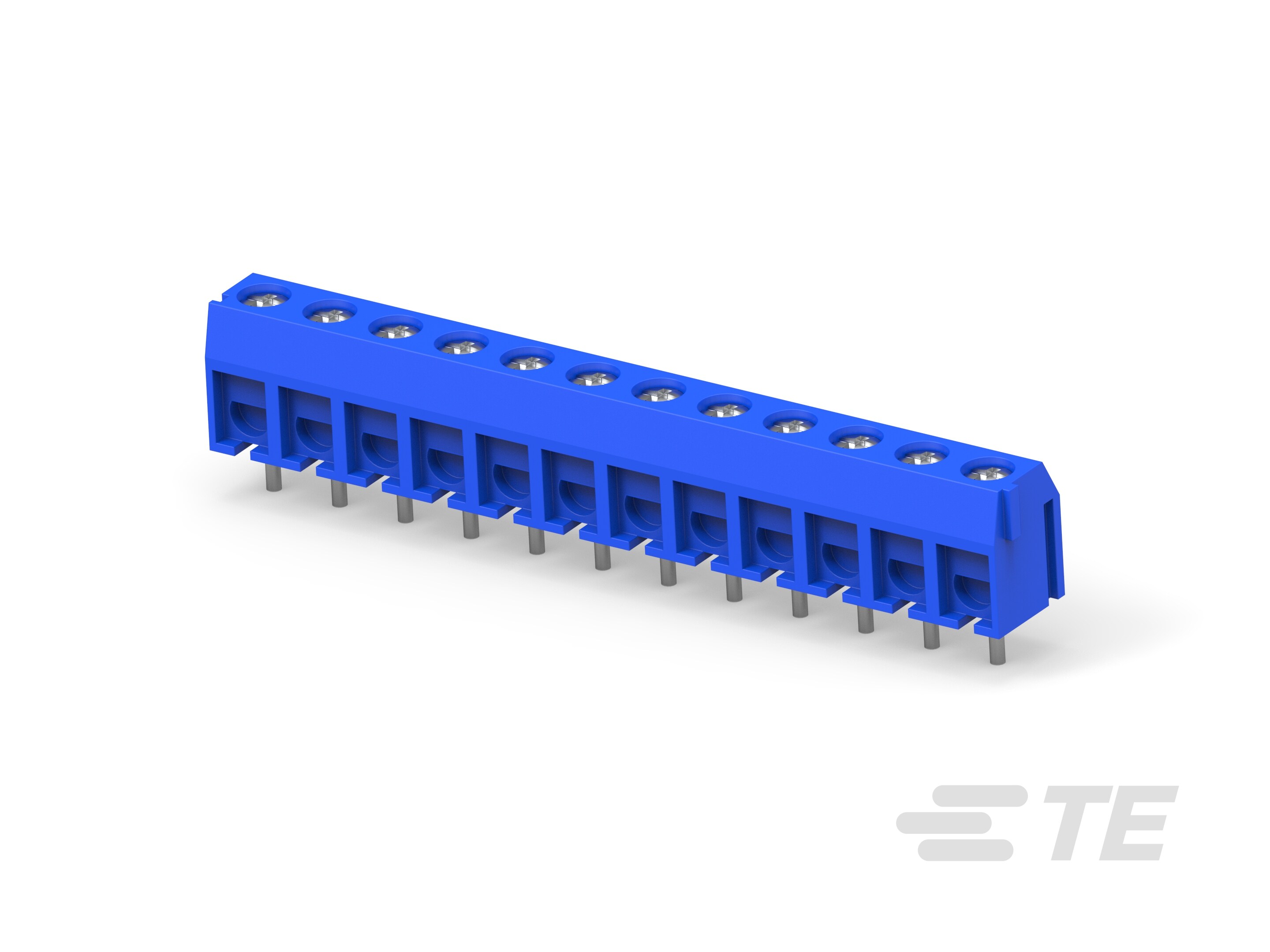

TE Connectivity AMP Connectors 1-1776244-2	Brass	Tin Plated	Chromate Plated	Galvanized Steel	0.51 Nm	Nylon 6/6 PA66 Polyamide	Steel Stainless	M2.6	-55 °C	105 °C	10 A	1	14 AWG	22 AWG	0.197 in	Horizontal with Board	300 V	Through Hole	Leaf Spring Screw Wire Guard	Blue	12	Interlocking (Side)

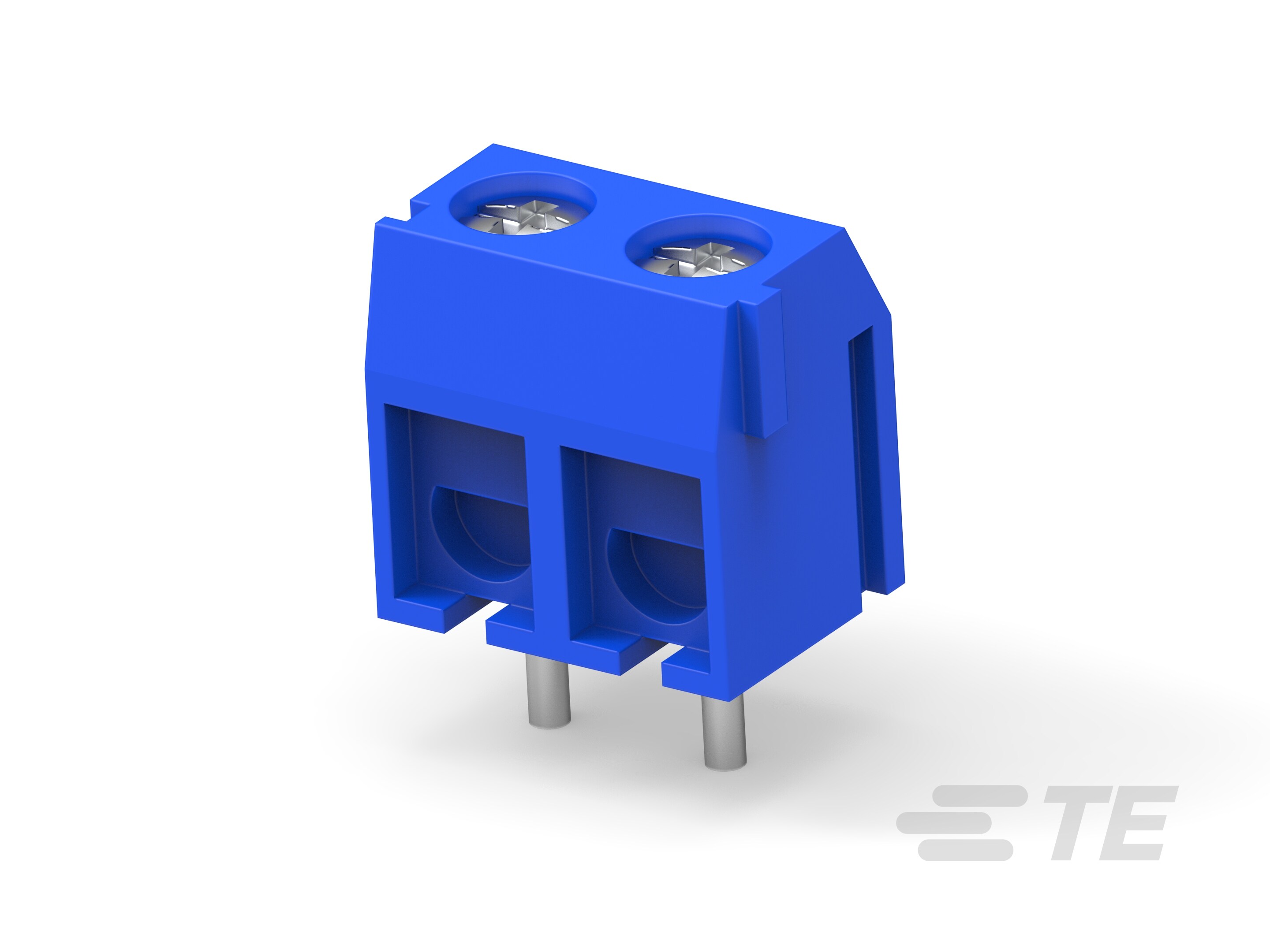

TE Connectivity AMP Connectors 1776244-2	Brass	Tin Plated	Chromate Plated	Galvanized Steel	0.51 Nm	Nylon 6/6 PA66 Polyamide	Steel Stainless	M2.6	-55 °C	105 °C	10 A	1	14 AWG	22 AWG	0.197 in	Horizontal with Board	300 V	Through Hole	Leaf Spring Screw Wire Guard	Blue	2	Interlocking (Side)
TE Connectivity AMP Connectors 1776244-8	Brass	Tin Plated	Chromate Plated	Galvanized Steel	0.51 Nm	Nylon 6/6 PA66 Polyamide	Steel Stainless	M2.6	-55 °C	105 °C	10 A	1	14 AWG	22 AWG	0.197 in	Horizontal with Board	300 V	Through Hole	Leaf Spring Screw Wire Guard	Blue	8	Interlocking (Side)
TE Connectivity AMP Connectors 1-1776244-1	Brass	Tin Plated	Chromate Plated	Galvanized Steel	0.51 Nm	Nylon 6/6 PA66 Polyamide	Steel Stainless	M2.6	-55 °C	105 °C	10 A	1	14 AWG	22 AWG	0.197 in	Horizontal with Board	300 V	Through Hole	Leaf Spring Screw Wire Guard	Blue	11	Interlocking (Side)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

1-1773458-1_EURO_STYLE_TERMINAL_BLOCKS_QRG

BUCHANAN TERMINAL BLOCKS CATALOG - EUROSTYLE TERMINAL BLOCKS

Datasheet
