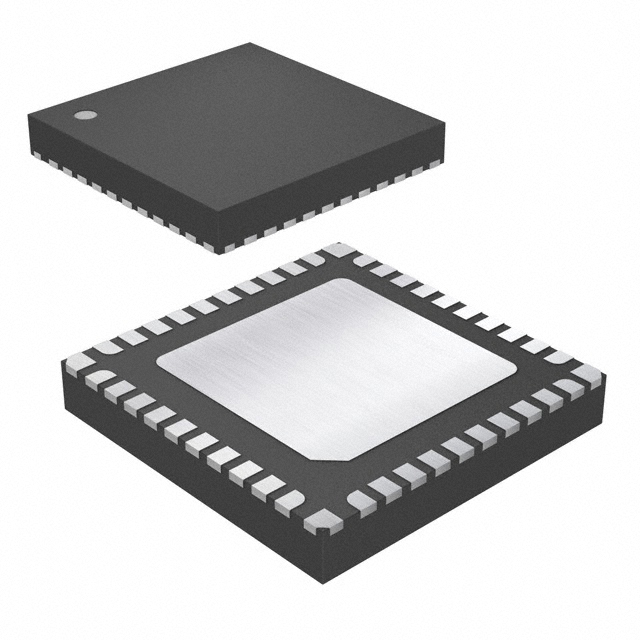

TB62D787FTG,EL
ActiveToshiba Semiconductor and Storage
IC LED DRVR LIN PWM 40MA 40VQFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TB62D787FTG,EL
ActiveToshiba Semiconductor and Storage
IC LED DRVR LIN PWM 40MA 40VQFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TB62D787FTG,EL |
|---|---|
| Current - Output / Channel [custom] | 40 mA |
| Dimming | PWM |
| Internal Switch(s) | True |
| Mounting Type | Surface Mount |
| Number of Outputs | 24 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 40-VFQFN Exposed Pad |
| Supplier Device Package | 40-VQFN (6x6) |
| Type | Linear |
| Voltage - Output [Max] | 4 V |
| Voltage - Output [Min] | 0.5 V |
| Voltage - Supply (Max) [Max] | 28 V |
| Voltage - Supply (Min) [Min] | 7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 4.03 | |
| 10 | $ 2.59 | |||
| 25 | $ 2.22 | |||
| 100 | $ 1.79 | |||
| 250 | $ 1.58 | |||
| 500 | $ 1.45 | |||
| 1000 | $ 1.34 | |||
| Digi-Reel® | 1 | $ 4.03 | ||
| 10 | $ 2.59 | |||
| 25 | $ 2.22 | |||
| 100 | $ 1.79 | |||
| 250 | $ 1.58 | |||
| 500 | $ 1.45 | |||
| 1000 | $ 1.34 | |||
| Tape & Reel (TR) | 4000 | $ 1.29 | ||
Description
General part information
TB62D787 Series
LED Driver IC 24 Output Linear PWM Dimming 40mA 40-VQFN (6x6)
Documents
Technical documentation and resources
