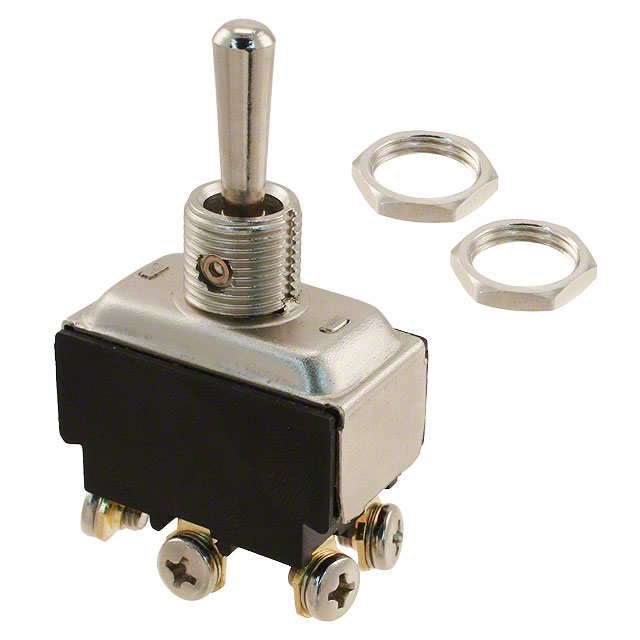

ST26KD00

Active

E-Switch

SWITCH TOGGLE DPDT 20A 125V

Search across all available documentation for this part.

Active

E-Switch

SWITCH TOGGLE DPDT 20A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	ST26KD00

Actuator Length [x]	17.5 mm
Actuator Material	Brass, Nickel Plated
Actuator Type	Standard Round
Bushing Thread	M12
Bushing Thread	1 x 1
Circuit	DPDT
Current Rating (Amps)	20 A
Electrical Life	6000 Cycles
Illumination	Non-Illuminated
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	0 °C
Panel Cutout Dimensions [diameter]	12 mm
Switch Function	Mom-Off-Mom
Termination Style	Screw Terminal
Voltage Rating - AC	125 V

Part	Switch Function	Actuator Length [x]	Panel Cutout Dimensions [diameter]	Circuit	Actuator Material	Illumination	Current Rating (Amps)	Actuator Type	Termination Style	Electrical Life	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - AC	Bushing Thread	Bushing Thread
E-Switch ST26KD00	Mom-Off-Mom	17.5 mm	12 mm	DPDT	Brass Nickel Plated	Non-Illuminated	20 A	Standard Round	Screw Terminal	6000 Cycles	0 °C	85 °C	125 V	M12	1 x 1
E-Switch ST26KD02	Mom-Off-Mom	16.6 mm	12 mm	DPDT	Brass Nickel Plated	Non-Illuminated	20 A	Standard Round	Screw Terminal	6000 Cycles	0 °C	85 °C	125 V	15/32-32

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch DPDT Panel Mount
