5337.4-25-M6-20-NI

Active

J.W. Winco

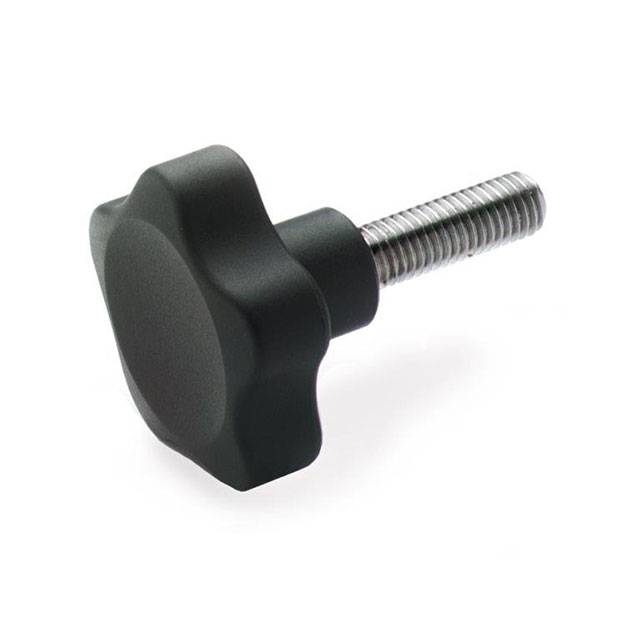

FIVE-LOBED KNOB, PLASTIC

Search across all available documentation for this part.

Active

J.W. Winco

FIVE-LOBED KNOB, PLASTIC

Technical Specifications

Parameters and characteristics for this part

Part	Height [z]	Height [z]	Diameter [diameter]	Diameter [diameter]	Shaft Size	Material	Type	Indicator [custom]	Style	Color	Height [diameter]	Height [diameter]
J.W. Winco 5337.4-25-M4-6-NI	20.07 mm	0.79 in	24.89 mm	0.98 in	M4	Plastic	5 Arm	No Indicator	Clamping	Black
J.W. Winco 5337.4-50-M8-20-NI			50.04 mm	1.97 "	M8	Plastic	5 Arm	No Indicator	Clamping	Black	1.22 in	30.99 mm
J.W. Winco 5337.4-25-M6-20-NI	20.07 mm	0.79 in	24.89 mm	0.98 in	M6	Plastic	5 Arm	No Indicator	Clamping	Black
J.W. Winco 5337.4-32-M6-16-NI	22.61 mm	0.89 "	32 mm	1.26 in	M6	Plastic	5 Arm	No Indicator	Clamping	Black
J.W. Winco 5337.4-60-1/2X13-MS	36.58 mm	1.44 in	59.94 mm	2.36 in	1/2"-13	Plastic	5 Arm	No Indicator	Clamping	Black
J.W. Winco 5337.4-1.57-5/16X18-1.00-ST	25.91 mm	1.02 in	39.88 mm	1.57 in	5/16"-18	Plastic	5 Arm	No Indicator	Clamping	Black
J.W. Winco 5337.4-25-M4-10-NI	20.07 mm	0.79 in	24.89 mm	0.98 in	M4	Plastic	5 Arm	No Indicator	Clamping	Black
J.W. Winco 5337.4-32-M6-35-NI	22.61 mm	0.89 "	32 mm	1.26 in	M6	Plastic	5 Arm	No Indicator	Clamping	Black
J.W. Winco 5337.4-50-M10-CR			50.04 mm	1.97 "	M10	Plastic	5 Arm	No Indicator	Clamping	Black	1.22 in	30.99 mm
J.W. Winco 5337.4-40-1/4X20-MS	25.91 mm	1.02 in	39.88 mm	1.57 in	1/4"-20	Plastic	5 Arm	No Indicator	Clamping	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 3.94

General part information

5 Arm Knob M6 Shaft with No Indicator Plastic Black

Technical documentation and resources
