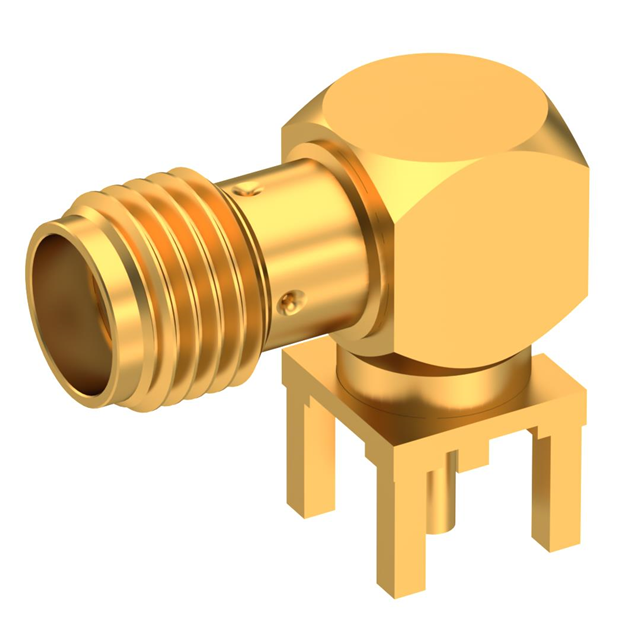

R125680000

Active

Radiall USA, Inc.

SMA F RA SMT C100

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMA F RA SMT C100

Technical Specifications

Parameters and characteristics for this part

Specification	R125680000

Body Finish	Gold
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Through Hole, Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	500 V

Part	Dielectric Material	Number of Ports	Housing Color	Mounting Type	Body Material	Center Contact Plating	Voltage Rating	Connector Style	Center Contact Material	Contact Termination	Mating Cycles	Frequency - Max [Max]	Connector Type	Body Finish	Operating Temperature [Min]	Operating Temperature [Max]	Shield Termination	Impedance
Radiall USA, Inc. R125680000	Polytetrafluoroethylene (PTFE)	1	Gold	Through Hole Right Angle	Stainless Steel	Gold	500 V	SMA	Beryllium Copper	Solder	500	18 GHz	Female Socket Jack	Gold	-65 ░C	165 °C	Solder	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMA Connector Jack, Female Socket 50 Ohms Through Hole, Right Angle Solder
