Q-2I04F0003003M

Active

Amphenol Custom Cable

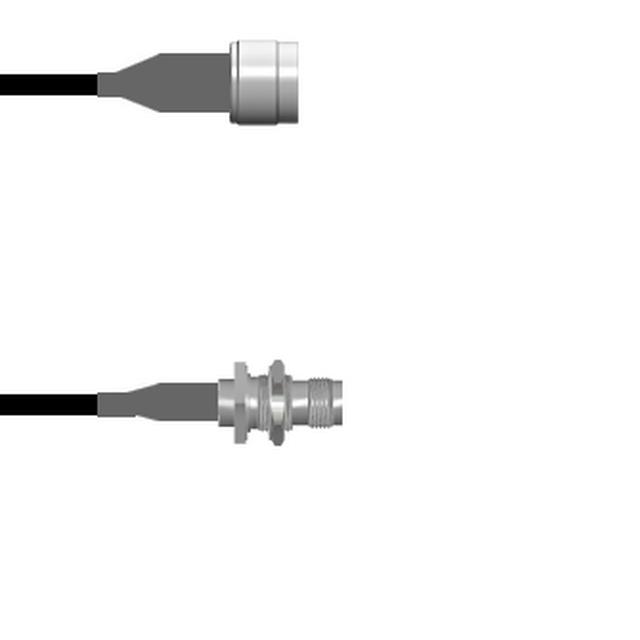

CBL ASSY NTYPE-TNC PLG-JACK 9.8'

Deep-Dive with AI

Search across all available documentation for this part.

Q-2I04F0003003M

Active

Amphenol Custom Cable

CBL ASSY NTYPE-TNC PLG-JACK 9.8'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2I04F0003003M

1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	TNC Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	3 m
Length	118.1 in
Length	9.8 '
Overall Impedance	50 Ohms

Q-2I04F0 Series

Part	Features	2nd Connector Mounting Type	2nd Connector	Cable Type	Length	Length	Length	1st Contact Gender	Color	1st Connector Mounting Type	2nd Connector Mounting Feature	2nd Contact Gender	Overall Impedance	Frequency - Max [Max]
Amphenol Custom Cable Q-2I04F0005108i	Shielded	Panel Mount	TNC Jack	RG-316	2.7 m	9 ft	108 in	Male	Copper	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Female	50 Ohms	11 GHz
Amphenol Custom Cable Q-2I04F0005036i	Shielded	Panel Mount	TNC Jack	RG-316	91.44 cm		36 in	Male	Copper	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Female	50 Ohms	11 GHz
Amphenol Custom Cable Q-2I04F0003024i	Shielded	Panel Mount	TNC Jack	RG-174	609.6 mm		24 "	Male	Black	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Female	50 Ohms	11 GHz
Amphenol Custom Cable Q-2I04F0003108i	Shielded	Panel Mount	TNC Jack	RG-174	2.7 m	9 ft	108 in	Male	Black	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Female	50 Ohms	11 GHz
Amphenol Custom Cable Q-2I04F0003003M	Shielded	Panel Mount	TNC Jack	RG-174	3 m	9.8 '	118.1 in	Male	Black	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Female	50 Ohms	11 GHz
Amphenol Custom Cable Q-2I04F0003.75M	Shielded	Panel Mount	TNC Jack	RG-174	750 mm		29.53 "	Male	Black	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Female	50 Ohms	11 GHz
Amphenol Custom Cable Q-2I04F0003012i	Shielded	Panel Mount	TNC Jack	RG-174	304.8 mm		12 "	Male	Black	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Female	50 Ohms	11 GHz
Amphenol Custom Cable Q-2I04F00051.5M	Shielded	Panel Mount	TNC Jack	RG-316	1.5 m	4.9 ft	59.1 in	Male	Copper	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Female	50 Ohms	11 GHz
Amphenol Custom Cable Q-2I04F0005048i	Shielded	Panel Mount	TNC Jack	RG-316	1200 mm	4 ft	48 in	Male	Copper	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Female	50 Ohms	11 GHz
Amphenol Custom Cable Q-2I04F0005024i	Shielded	Panel Mount	TNC Jack	RG-316	609.6 mm		24 "	Male	Copper	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Female	50 Ohms	11 GHz

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 61.82
		25	$ 57.57
		50	$ 53.31
		100	$ 49.66
		250	$ 46.62

Description

General part information

Q-2I04F0 Series

Cable Assembly Coaxial N-Type to TNC RG-174 118.1" (3.0m) 9.8'

Documents

Technical documentation and resources

No documents available
