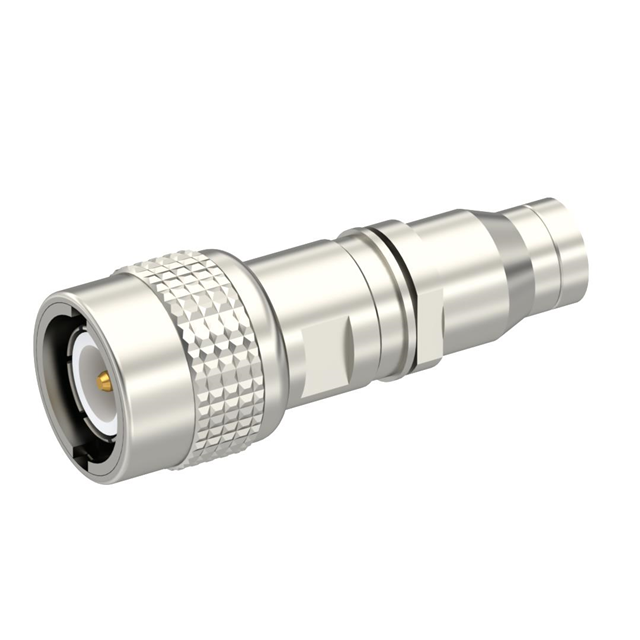

R166092190

Active

Radiall USA, Inc.

C / STRAIGHT PLUG CRIMP TYPE CAB

Search across all available documentation for this part.

Active

Radiall USA, Inc.

C / STRAIGHT PLUG CRIMP TYPE CAB

Technical Specifications

Parameters and characteristics for this part

Specification	R166092190

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	C Type
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	3 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	1000 VDC

Part	Dielectric Material	Connector Style	Mounting Type	Body Finish	Mating Cycles	Body Material	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Impedance	Frequency - Max [Max]	Connector Type	Center Contact Plating	Housing Color	Contact Termination	Center Contact Material	Voltage Rating	Number of Ports	Shield Termination
Radiall USA, Inc. R166092190	Polytetrafluoroethylene (PTFE)	C Type	Free Hanging (In-Line)	Nickel	500	Brass	Bayonet Lock	-65 ░C	165 °C	50 Ohms	3 GHz	Male Pin Plug	Gold	Silver	Crimp	Brass	1000 VDC	1	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 129.20

General part information

C Type Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
