TD2-1G-DC-3-H

Active

Switch Components

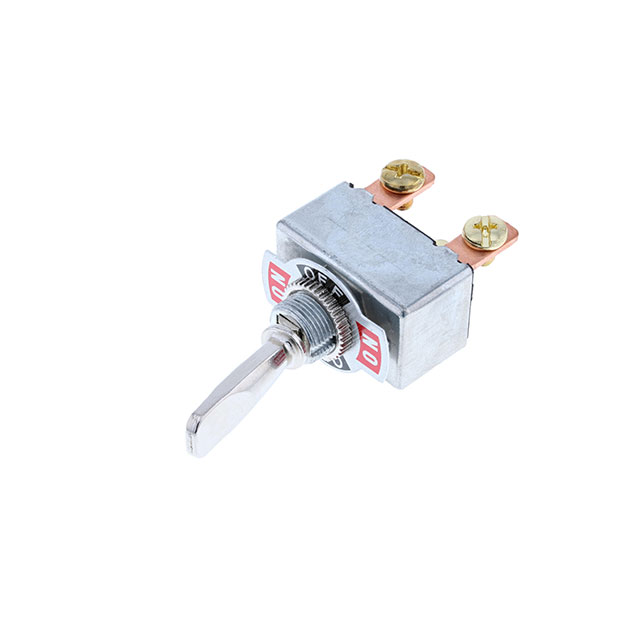

SWITCH TOGGLE SPDT 50A 12V

Search across all available documentation for this part.

Active

Switch Components

SWITCH TOGGLE SPDT 50A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	TD2-1G-DC-3-H

Actuator Length [x]	28.4 mm
Actuator Material	Zinc Alloy, Nickel Plated
Actuator Type	Flatted
Bushing Thread	15/32-32
Circuit	SPDT
Current Rating (Amps)	50 A
Electrical Life	6000 Cycles
Illumination	Non-Illuminated
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	12.2 mm
Switch Function	Mom-Off-Mom
Termination Style	Screw Terminal
Voltage Rating - DC	12 V

SWITCH TOGGLE SPDT 50A 12V

Part	Circuit	Actuator Length [x]	Operating Temperature [Max]	Operating Temperature [Min]	Bushing Thread	Termination Style	Actuator Material	Panel Cutout Dimensions [diameter]	Illumination	Switch Function	Current Rating (Amps)	Electrical Life	Voltage Rating - DC	Actuator Type
Switch Components TD2-1G-DC-3-H	SPDT	28.4 mm	85 °C	-20 C	15/32-32	Screw Terminal	Zinc Alloy, Nickel Plated	12.2 mm	Non-Illuminated	Mom-Off-Mom	50 A	6000 Cycles	12 V	Flatted
