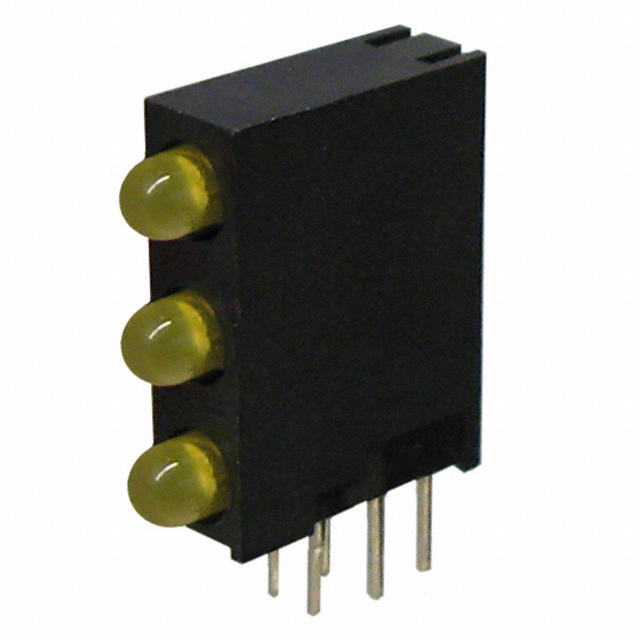

XPZ3LUY147D

Active

SunLED

LED CBI 3MM 3X1 YELLOW RA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XPZ3LUY147D

Active

SunLED

LED CBI 3MM 3X1 YELLOW RA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XPZ3LUY147D

Color	Yellow (x 3)
Configuration	3 High
Current	140 mA
Lens Size	3 mm
Lens Size	T-1
Lens Style	Round with Domed Top
Lens Type	Tinted, Diffused
Millicandela Rating	14 mcd
Mounting Type	Through Hole, Right Angle
Viewing Angle [custom]	40 °
Voltage Rating	1.95 V
Wavelength - Peak	590 nm

XPZ3LUY147 Series

Part	Current	Millicandela Rating	Wavelength - Peak	Color	Configuration	Lens Type	Lens Style	Lens Size	Lens Size	Viewing Angle [custom]	Voltage Rating	Mounting Type
SunLED XPZ3LUY147D	140 mA	14 mcd	590 nm	Yellow (x 3)	3 High	Diffused Tinted	Round with Domed Top	3 mm	T-1	40 °	1.95 V	Through Hole Right Angle

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	750	$ 0.57

Description

General part information

XPZ3LUY147 Series

LED Circuit Board Indicator LED Circuit Board Indicator 3 High Yellow (x 3) Diffused, Tinted 1.95V 140mA Round with Domed Top 3mm, T-1 Through Hole, Right Angle

Documents

Technical documentation and resources
