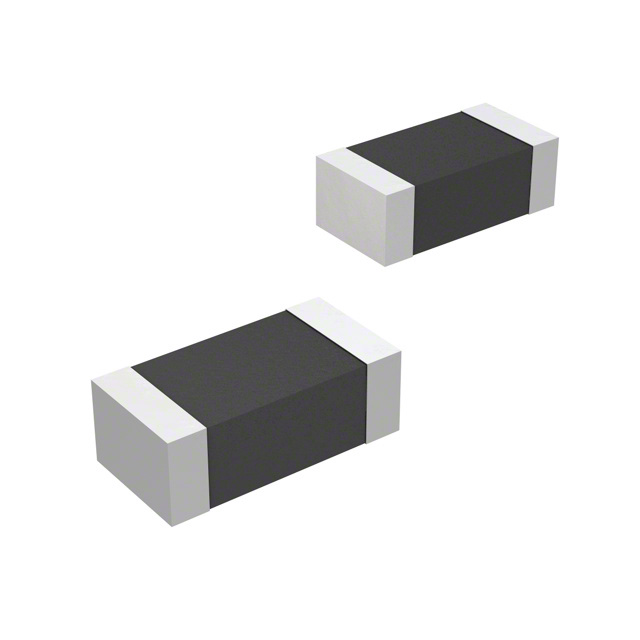

MH3261-500Y

Obsolete

Bourns Inc.

FERRITE BEAD 50 OHM 1206 1LN

Search across all available documentation for this part.

Obsolete

Bourns Inc.

FERRITE BEAD 50 OHM 1206 1LN

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Current Rating (Max) [Max]	DC Resistance (DCR) (Max)	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Impedance @ Frequency	Filter Type	Height (Max) [Max]	Height (Max) [Max]	Number of Lines	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	DC Resistance (DCR) (Max) [Max]
Bourns Inc. MH3261-500Y	Surface Mount	3 A	25 mOhm	0.063 in	1.6 mm	0.126 "	3.2 mm	50 Ohms	Power Signal Line	0.051 "	1.3 mm	1	1206 (3216 Metric)	-55 °C	125 °C
Bourns Inc. MH3261-700Y	Surface Mount	4 A		0.063 in	1.6 mm	0.126 "	3.2 mm	70 Ohms	Power Signal Line	0.051 "	1.3 mm	1	1206 (3216 Metric)	-55 °C	125 °C	30 mOhm
Bourns Inc. MH3261-501Y	Surface Mount	3 A		0.063 in	1.6 mm	0.126 "	3.2 mm	500 Ohms	Power Signal Line	0.051 "	1.3 mm	1	1206 (3216 Metric)	-55 °C	125 °C	40 mOhm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

50 Ohms @ 100 MHz 1 Power, Signal Line Ferrite Bead 1206 (3216 Metric) 3A 25mOhm
