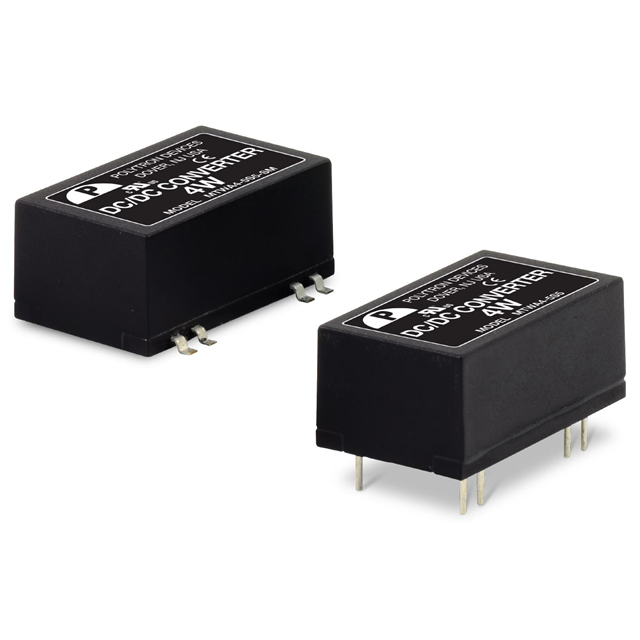

MTWA4-5S9-SM

Active

Daburn Electronics

DC/DC CONVERTER 4 WATTS MEDICAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MTWA4-5S9-SM

Active

Daburn Electronics

DC/DC CONVERTER 4 WATTS MEDICAL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MTWA4-5S9-SM

Applications	ITE (Commercial), Medical
Approval Agency	CB, UL
Current - Output (Max) [Max]	389 mA
Efficiency	78 %
Features	Remote On/Off
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	105 C
Operating Temperature [Min]	-40 °C
Package / Case	7 Leads
Package / Case	16-SMD Module
Power (Watts)	3.5 W
Size / Dimension [x]	0.96 in
Size / Dimension [x]	24.3 mm
Size / Dimension [y]	0.57 in
Size / Dimension [y]	14.4 mm
Size / Dimension [z]	10.5 mm
Size / Dimension [z]	0.41 "
Type	Isolated Module
Voltage - Input (Max) [Max]	12 V
Voltage - Input (Min) [Min]	4.5 V
Voltage - Isolation	5000 V
Voltage - Output 1	9 V

MTWA4 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Voltage - Isolation	Voltage - Output 1	Voltage - Input (Max) [Max]	Power (Watts)	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Package / Case	Package / Case	Type	Number of Outputs	Mounting Type	Features	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Applications	Efficiency	Voltage - Output 2	Current - Output (Max)	Current - Output (Max)
Daburn Electronics MTWA4-12S12-SM	-40 °C	105 C	CB UL	5000 V	12 V	18 V	3.5 W	292 mA	9 V	7 Leads	16-SMD Module	Isolated Module	1	Surface Mount	Remote On/Off	0.96 in	0.57 in	10.5 mm	24.3 mm	14.4 mm	0.41 "	ITE (Commercial) Medical
Daburn Electronics MTWA4-12S15	-40 °C	105 C	CB UL	5000 V	15 V	18 V	3.5 W		9 V	7 Leads	16-DIP Module	Isolated Module	1	Through Hole	Remote On/Off	0.96 in	0.57 in	10.2 mm	24.3 mm	14.4 mm	0.4 "	ITE (Commercial) Medical
Daburn Electronics MTWA4-5-15	-40 °C	105 C	CB UL	5000 V	15 V	12 V	3.5 W		4.5 V	7 Leads	16-DIP Module	Isolated Module	2	Through Hole	Remote On/Off	0.96 in	0.57 in	10.2 mm	24.3 mm	14.4 mm	0.4 "	ITE (Commercial) Medical	81 %	-15 V	117 mA	117 mA
Daburn Electronics MTWA4-5S9-SM	-40 °C	105 C	CB UL	5000 V	9 V	12 V	3.5 W	389 mA	4.5 V	7 Leads	16-SMD Module	Isolated Module	1	Surface Mount	Remote On/Off	0.96 in	0.57 in	10.5 mm	24.3 mm	14.4 mm	0.41 "	ITE (Commercial) Medical	78 %
Daburn Electronics MTWA4-5S15	-40 °C	105 C	CB UL	5000 V	15 V	12 V	3.5 W		4.5 V	7 Leads	16-DIP Module	Isolated Module	1	Through Hole	Remote On/Off	0.96 in	0.57 in	10.2 mm	24.3 mm	14.4 mm	0.4 "	ITE (Commercial) Medical
Daburn Electronics MTWA4-12S5-SM	-40 °C	105 C	CB UL	5000 V	5 V	18 V	3.5 W	700 mA	9 V	7 Leads	16-SMD Module	Isolated Module	1	Surface Mount	Remote On/Off	0.96 in	0.57 in	10.5 mm	24.3 mm	14.4 mm	0.41 "	ITE (Commercial) Medical	79 %
Daburn Electronics MTWA4-24S5	-40 °C	105 C	CB UL	5000 V	5 V	36 V	3.5 W	700 mA	18 V	7 Leads	16-DIP Module	Isolated Module	1	Through Hole	Remote On/Off	0.96 in	0.57 in	10.2 mm	24.3 mm	14.4 mm	0.4 "	ITE (Commercial) Medical	79 %
Daburn Electronics MTWA4-24S15-SM	-40 °C	105 C	CB UL	5000 V	15 V	36 V	3.5 W		18 V	7 Leads	16-SMD Module	Isolated Module	1	Surface Mount	Remote On/Off	0.96 in	0.57 in	10.5 mm	24.3 mm	14.4 mm	0.41 "	ITE (Commercial) Medical	83 %
Daburn Electronics MTWA4-12S24	-40 °C	105 C	CB UL	5000 V	24 V	18 V	3.5 W	146 mA	9 V	7 Leads	16-DIP Module	Isolated Module	1	Through Hole	Remote On/Off	0.96 in	0.57 in	10.2 mm	24.3 mm	14.4 mm	0.4 "	ITE (Commercial) Medical
Daburn Electronics MTWA4-5S12-SM	-40 °C	105 C	CB UL	5000 V	12 V	12 V	3.5 W	292 mA	4.5 V	7 Leads	16-SMD Module	Isolated Module	1	Surface Mount	Remote On/Off	0.96 in	0.57 in	10.5 mm	24.3 mm	14.4 mm	0.41 "	ITE (Commercial) Medical

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 48.12

Description

General part information

MTWA4 Series

Isolated Module DC DC Converter 1 Output 9V 389mA 4.5V - 12V Input
