DS4424K
ActiveAnalog Devices Inc./Maxim Integrated

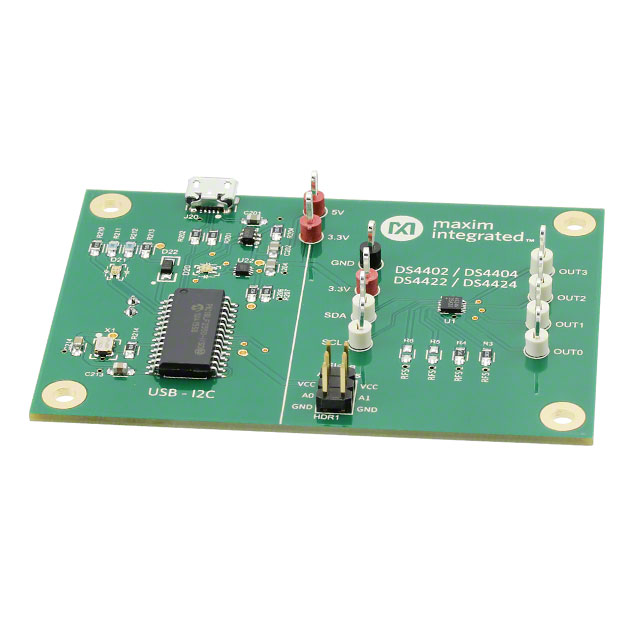

EVAL BOARD FOR DS4424
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDS4422,24
DS4424K
ActiveAnalog Devices Inc./Maxim Integrated
EVAL BOARD FOR DS4424
Deep-Dive with AI
DocumentsDS4422,24
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | DS4424K | DS4424 Series |
|---|---|---|
| Architecture | - | Current Sink, Current Source |
| DAC Type | Current | Current |
| Data Interface | I2C | I2C |
| Differential Output | - | False |
| INL/DNL (LSB) | - | 0.5 - 1 LSB |
| Mounting Type | - | Surface Mount |
| Number of D/A Converters | - | 4 |
| Number of DAC's | 4 | 4 |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Output Type | - | Current - Unbuffered |
| Package / Case | - | 14-WFDFN Exposed Pad |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 14-TDFN (3x3) |
| Utilized IC / Part | DS4424 | DS4424 |
| Voltage - Supply, Analog | - | 2.7 V |
| Voltage - Supply, Analog | - | 5.5 V |
| Voltage - Supply, Digital | - | 5.5 V |
| Voltage - Supply, Digital | - | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 212.59 | |
DS4424 Series
IC DAC 7BIT A-OUT 14TDFN
| Part | Supplier Device Package | Output Type | Voltage - Supply, Digital [Max] | Voltage - Supply, Digital [Min] | Architecture | Package / Case | Number of D/A Converters | INL/DNL (LSB) | Voltage - Supply, Analog [Min] | Voltage - Supply, Analog [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Differential Output | Data Interface | Mounting Type | Supplied Contents | Utilized IC / Part | DAC Type | Number of DAC's |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated DS4424N+T&R | 14-TDFN (3x3) | Current - Unbuffered | 5.5 V | 2.7 V | Current Sink, Current Source | 14-WFDFN Exposed Pad | 4 | 0.5 LSB, 1 LSB | 2.7 V | 5.5 V | 85 °C | -40 °C | I2C | Surface Mount | |||||
Analog Devices Inc./Maxim Integrated DS4424EVKIT# | I2C | Board(s) | DS4424 | Current | 4 | ||||||||||||||
Analog Devices Inc./Maxim Integrated DS4424K | I2C | Board(s) | DS4424 | Current | 4 | ||||||||||||||
Analog Devices Inc./Maxim Integrated DS4424N+ | 14-TDFN (3x3) | Current - Unbuffered | 5.5 V | 2.7 V | Current Sink, Current Source | 14-WFDFN Exposed Pad | 4 | 0.5 LSB, 1 LSB | 2.7 V | 5.5 V | 85 °C | -40 °C | I2C | Surface Mount |
Description
General part information
DS4424 Series
DS4424 7 Bit Samples Per Second Digital to Analog Converter (DAC) Evaluation Board
