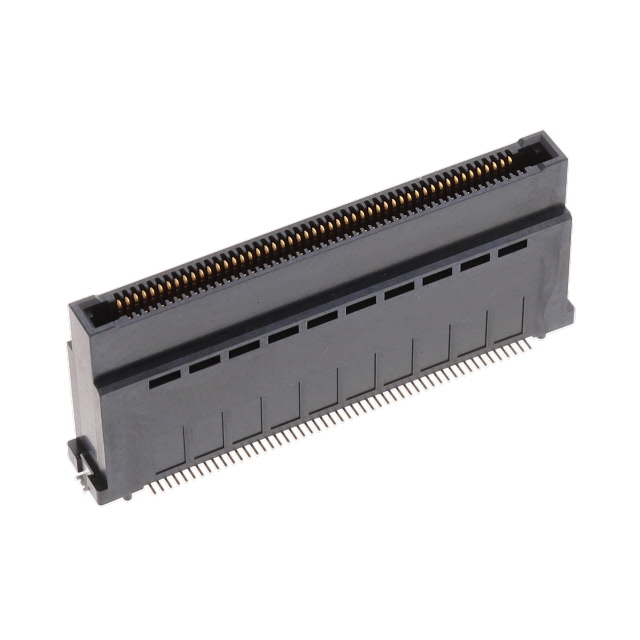

AX01R100VANBR200
ObsoleteJAE Electronics
RIGID SIDE B2B CONNECTOR, 100 PO
AX01R100VANBR200
ObsoleteJAE Electronics
RIGID SIDE B2B CONNECTOR, 100 PO
Description
General part information
AX01R100 Series
100 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
Technical Specifications
Parameters and characteristics for this part
| Specification | AX01R100VANBR200 |
|---|---|
| Connector Type | Plug, Outer Shroud Contacts |
| Contact Finish | Gold |
| Contact Finish Thickness | 4 µin |
| Features | Board Guide |
| Height Above Board | 0.655 in |
| Mounting Type | Surface Mount |
| Number of Positions | 100 |
| Number of Rows | 2 |
| Pitch | 0.025 in |
