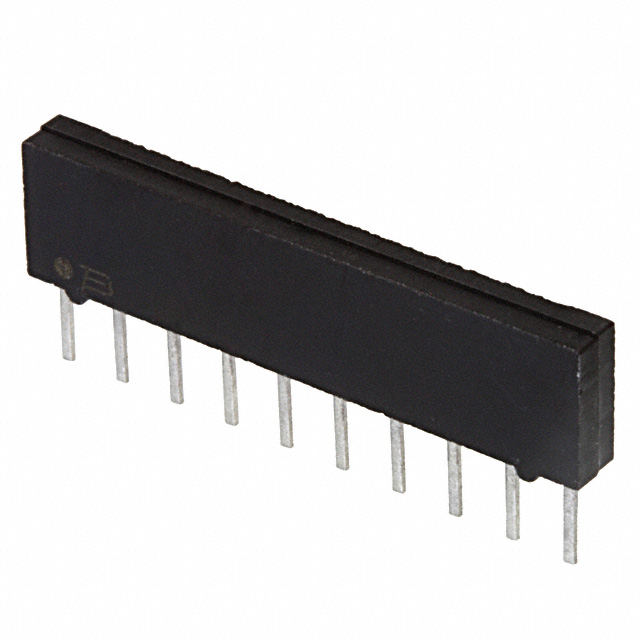

4310M-102-202LF

Active

Bourns Inc.

RES ARRAY 5 RES 2K OHM 10SIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

4310M-102-202LF

Active

Bourns Inc.

RES ARRAY 5 RES 2K OHM 10SIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	4310M-102-202LF

Circuit Type	Isolated
Height - Seated (Max)	6.35 mm
Height - Seated (Max) [Max]	0.25 in
Mounting Type	Through Hole
Number of Pins	10
Number of Resistors	5
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	10-SIP
Resistance (Ohms)	2k
Resistor-Ratio-Drift	50 ppm/°C
Supplier Device Package	10-SIP
Temperature Coefficient	100 ppm/°C
Tolerance	2 %

4310M Series

Part	Number of Pins	Resistance (Ohms)	Temperature Coefficient	Tolerance	Circuit Type	Operating Temperature [Min]	Operating Temperature [Max]	Resistor-Ratio-Drift	Package / Case	Number of Resistors	Height - Seated (Max)	Height - Seated (Max) [Max]	Mounting Type	Supplier Device Package	Power Per Element	Resistance (Ohms)
Bourns Inc. 4310M-102-104	10	100 kOhms	100 ppm/°C	2 %	Isolated	-55 °C	125 °C	50 ppm/°C	10-SIP	5	6.35 mm	0.25 in	Through Hole	10-SIP
Bourns Inc. 4310M-102-102	10	1 kOhms	100 ppm/°C	2 %	Isolated	-55 °C	125 °C	50 ppm/°C	10-SIP	5	6.35 mm	0.25 in	Through Hole	10-SIP
Bourns Inc. 4310M-R2R-503LF	10	50 kOhms 100 kOhms	100 ppm/°C	2 %	R2R Ladder	-55 °C	125 °C	50 ppm/°C	10-SIP	16	6.35 mm	0.25 in	Through Hole	10-SIP	170 mW
Bourns Inc. 4310M-102-202LF	10		100 ppm/°C	2 %	Isolated	-55 °C	125 °C	50 ppm/°C	10-SIP	5	6.35 mm	0.25 in	Through Hole	10-SIP		2k
Bourns Inc. 4310M-101-564LF	10	560 kOhms	100 ppm/°C	2 %	Bussed	-55 °C	125 °C	50 ppm/°C	10-SIP	9	6.35 mm	0.25 in	Through Hole	10-SIP	250 mW
Bourns Inc. 4310M-101-682	10	6.8 Ohms	100 ppm/°C	2 %	Bussed	-55 °C	125 °C	50 ppm/°C	10-SIP	9	6.35 mm	0.25 in	Through Hole	10-SIP	250 mW
Bourns Inc. 4310M-101-391LF	10	390 Ohms	100 ppm/°C	2 %	Bussed	-55 °C	125 °C	50 ppm/°C	10-SIP	9	6.35 mm	0.25 in	Through Hole	10-SIP	250 mW
Bourns Inc. 4310M-101-471LF	10	470 Ohms	100 ppm/°C	2 %	Bussed	-55 °C	125 °C	50 ppm/°C	10-SIP	9	6.35 mm	0.25 in	Through Hole	10-SIP	250 mW
Bourns Inc. 4310M-101-182	10		100 ppm/°C	2 %	Bussed	-55 °C	125 °C	50 ppm/°C	10-SIP	9	6.35 mm	0.25 in	Through Hole	10-SIP	250 mW	1.8k
Bourns Inc. 4310M-102-121LF	10	120 Ohms	100 ppm/°C	2 %	Isolated	-55 °C	125 °C	50 ppm/°C	10-SIP	5	6.35 mm	0.25 in	Through Hole	10-SIP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	2000	$ 1.46

Description

General part information

4310M Series

2k Ohm ±2% 400mW Power Per Element Isolated 5 Resistor Network/Array ±100ppm/°C 10-SIP
