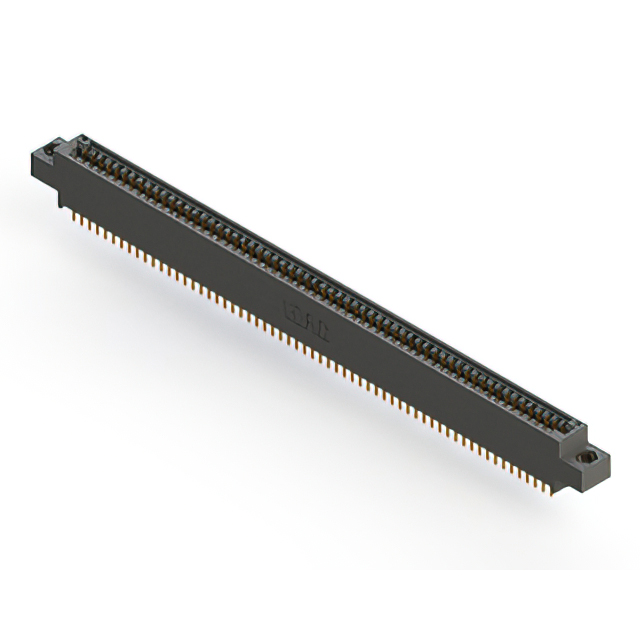

895-122-521-807

Active

EDAC Inc.

CONN EDGE DUAL FML 122POS 0.100

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

895-122-521-807

Active

EDAC Inc.

CONN EDGE DUAL FML 122POS 0.100

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	895-122-521-807

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	M3, Threaded Insert, Top Mount Opening
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole
Number of Positions	122
Number of Positions/Bay/Row [custom]	61
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Solder
Termination Rows	2

895-122 Series

...

Part	Contact Type	Flange Feature [diameter]	Flange Feature [diameter]	Flange Feature	Termination Rows	Material - Insulation	Number of Rows	Read Out	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions/Bay/Row [custom]	Termination	Contact Material	Number of Positions	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Color	Pitch [x]	Pitch [x]	Gender	Contact Finish	Card Type	Flange Feature	Flange Feature	Features
EDAC Inc. 895-122-541-202	Cantilever	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	2	Polyphenylene Sulfide (PPS)	2	Dual	10 Áin	0.25 Ám	Through Hole	125 °C	-40 °C	61	Wire Wrap	Copper Alloy	122	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	2.54 mm	0.1 in	Female	Gold	Non Specified - Dual Edge
EDAC Inc. 895-122-541-504	Cantilever	3.96 mm	0.156 in	Top Mount Opening Unthreaded	2	Polyphenylene Sulfide (PPS)	2	Dual	10 Áin	0.25 Ám	Through Hole	125 °C	-40 °C	61	Wire Wrap	Copper Alloy	122	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	2.54 mm	0.1 in	Female	Gold	Non Specified - Dual Edge
EDAC Inc. 895-122-558-208	Cantilever			4-40 Flush Mount Threaded Insert Top Opening	2	Polyphenylene Sulfide (PPS)	2	Dual	10 Áin	0.25 Ám	Through Hole Right Angle	125 °C	-40 °C	61	Solder	Copper Alloy	122	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	2.54 mm	0.1 in	Female	Gold	Non Specified - Dual Edge
EDAC Inc. 895-122-555-812	Cantilever			Side Mount Opening Unthreaded	2	Polyphenylene Sulfide (PPS)	2	Dual	10 Áin	0.25 Ám	Board Edge Straddle Mount	125 °C	-40 °C	61	Solder	Copper Alloy	122	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	2.54 mm	0.1 in	Female	Gold	Non Specified - Dual Edge	3.25 mm	0.128 in	Card Extender
EDAC Inc. 895-122-500-512	Cantilever			Side Mount Opening Unthreaded	2	Polyphenylene Sulfide (PPS)	2	Dual	10 Áin	0.25 Ám	Through Hole	125 °C	-40 °C	61	Solder Eyelet(s)	Copper Alloy	122	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	2.54 mm	0.1 in	Female	Gold	Non Specified - Dual Edge	3.25 mm	0.128 in
EDAC Inc. 895-122-560-203	Cantilever	2.95 mm	0.116 in	Floating Bobbin Flush Mount	2	Polyphenylene Sulfide (PPS)	2	Dual	10 Áin	0.25 Ám	Board Edge Straddle Mount	125 °C	-40 °C	61	Solder	Copper Alloy	122	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	2.54 mm	0.1 in	Female	Gold	Non Specified - Dual Edge			Card Extender
EDAC Inc. 895-122-540-802	Cantilever				2	Polyphenylene Sulfide (PPS)	2	Dual	10 Áin	0.25 Ám	Through Hole	125 °C	-40 °C	61	Wire Wrap	Copper Alloy	122	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	2.54 mm	0.1 in	Female	Gold	Non Specified - Dual Edge	3.25 mm	0.128 in
EDAC Inc. 895-122-521-807	Cantilever			M3 Threaded Insert Top Mount Opening	2	Polyphenylene Sulfide (PPS)	2	Dual	10 Áin	0.25 Ám	Through Hole	125 °C	-40 °C	61	Solder	Copper Alloy	122	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	2.54 mm	0.1 in	Female	Gold	Non Specified - Dual Edge
EDAC Inc. 895-122-524-502	Cantilever				2	Polyphenylene Sulfide (PPS)	2	Dual	10 Áin	0.25 Ám	Through Hole	125 °C	-40 °C	61	Solder	Copper Alloy	122	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	2.54 mm	0.1 in	Female	Gold	Non Specified - Dual Edge	3.25 mm	0.128 in
EDAC Inc. 895-122-521-204	Cantilever	3.96 mm	0.156 in	Flush Mount Top Opening Unthreaded	2	Polyphenylene Sulfide (PPS)	2	Dual	10 Áin	0.25 Ám	Through Hole	125 °C	-40 °C	61	Solder	Copper Alloy	122	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	2.54 mm	0.1 in	Female	Gold	Non Specified - Dual Edge

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 96.21

Description

General part information

895-122 Series

122 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
