YK3050213000G

Active

AMPHENOL ANYTEK

BARRIER TERMINAL BLOCKS 2POS, PI

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

YK3050213000G

Active

AMPHENOL ANYTEK

BARRIER TERMINAL BLOCKS 2POS, PI

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.12
		72	$ 0.54
		144	$ 0.52
		1008	$ 0.38
		5040	$ 0.30
		10008	$ 0.29

Description

General part information

YK305 Series

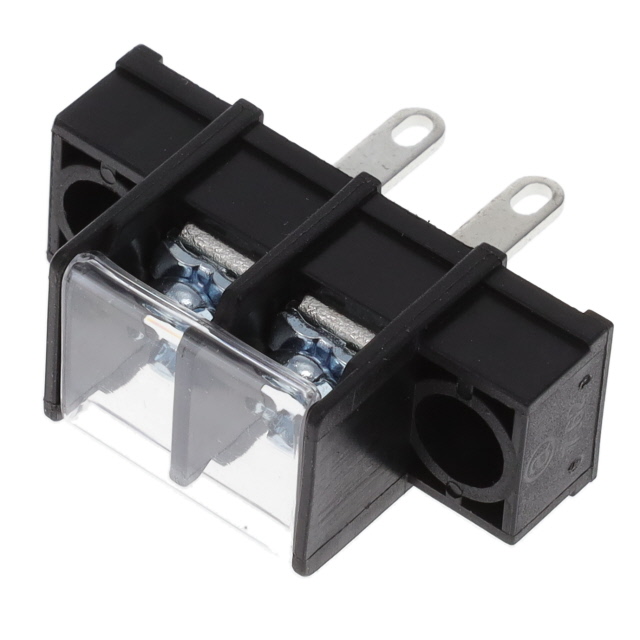

2 Circuit 0.300" (7.62mm) Barrier Block Connector Screws with Captive Plate

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	YK3050213000G	YK305 Series

Barrier Type	2 Wall (Dual)	2 Wall (Dual)
Bottom Termination	Solder Eyelets	Solder Eyelets
Color	Black	Black
Current Rating (Amps)	15 A	15 A
Features	Flange, Cover	Cover, Flange
Material - Insulation	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Panel, Chassis	Panel, Chassis
Number of Circuits	2	2 - 20
Number of Circuits	-	8
Number of Rows	1	1
Number of Wire Entries	2	2 - 20
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	0.3 in	0.3 in
Pitch [x]	7.62 mm	7.62 mm
Terminal Block Type	Barrier Block	Barrier Block
Terminal Screw Finish	Zinc	Zinc
Terminal Screw Material	Steel	Steel
Top Termination	Screws with Captive Plate	Screws with Captive Plate
Voltage Rating	300 VDC	300 VDC
Wire Gauge [Max]	22 AWG	22 AWG
Wire Gauge [Min]	14 AWG	14 AWG

YK305 Series

CONN BARRIER STRIP 8CIRC 0.3"

Part	Features	Material - Insulation	Pitch [x]	Pitch [x]	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge [Min]	Wire Gauge [Max]	Color	Bottom Termination	Number of Circuits [custom]	Terminal Screw Finish	Number of Wire Entries	Top Termination	Voltage Rating	Barrier Type	Material Flammability Rating	Number of Rows	Terminal Screw Material	Terminal Block Type	Current Rating (Amps)	Mounting Type	Number of Circuits
AMPHENOL ANYTEK YK3050823000G	Cover	Thermoplastic	0.3 in	7.62 mm	-40 °C	115 °C	14 AWG	22 AWG	Black	Solder Eyelets	8	Zinc	8	Screws with Captive Plate	300 VDC	2 Wall (Dual)	UL94 V-0	1	Steel	Barrier Block	15 A	Chassis, Panel
AMPHENOL ANYTEK YK3051623000G	Cover	Thermoplastic	0.3 in	7.62 mm	-40 °C	115 °C	14 AWG	22 AWG	Black	Solder Eyelets		Zinc	16	Screws with Captive Plate	300 VDC	2 Wall (Dual)	UL94 V-0	1	Steel	Barrier Block	15 A	Chassis, Panel	16
AMPHENOL ANYTEK YK3050703000G		Thermoplastic	0.3 in	7.62 mm	-40 °C	115 °C	14 AWG	22 AWG	Black	Solder Eyelets		Zinc	7	Screws with Captive Plate	300 VDC	2 Wall (Dual)	UL94 V-0	1	Steel	Barrier Block	15 A	Chassis, Panel	7
AMPHENOL ANYTEK YK3050903000G		Thermoplastic	0.3 in	7.62 mm	-40 °C	115 °C	14 AWG	22 AWG	Black	Solder Eyelets		Zinc	9	Screws with Captive Plate	300 VDC	2 Wall (Dual)	UL94 V-0	1	Steel	Barrier Block	15 A	Chassis, Panel
AMPHENOL ANYTEK YK3050603000G		Thermoplastic	0.3 in	7.62 mm	-40 °C	115 °C	14 AWG	22 AWG	Black	Solder Eyelets		Zinc	6	Screws with Captive Plate	300 VDC	2 Wall (Dual)	UL94 V-0	1	Steel	Barrier Block	15 A	Chassis, Panel	6
AMPHENOL ANYTEK YK3050303000G		Thermoplastic	0.3 in	7.62 mm	-40 °C	115 °C	14 AWG	22 AWG	Black	Solder Eyelets		Zinc	3	Screws with Captive Plate	300 VDC	2 Wall (Dual)	UL94 V-0	1	Steel	Barrier Block	15 A	Chassis, Panel	3
AMPHENOL ANYTEK YK3051123000G	Cover	Thermoplastic	0.3 in	7.62 mm	-40 °C	115 °C	14 AWG	22 AWG	Black	Solder Eyelets		Zinc	11	Screws with Captive Plate	300 VDC	2 Wall (Dual)	UL94 V-0	1	Steel	Barrier Block	15 A	Chassis, Panel	11
AMPHENOL ANYTEK YK3052023000G	Cover	Thermoplastic	0.3 in	7.62 mm	-40 °C	115 °C	14 AWG	22 AWG	Black	Solder Eyelets		Zinc	20	Screws with Captive Plate	300 VDC	2 Wall (Dual)	UL94 V-0	1	Steel	Barrier Block	15 A	Chassis, Panel	20
AMPHENOL ANYTEK YK3051323000G	Cover	Thermoplastic	0.3 in	7.62 mm	-40 °C	115 °C	14 AWG	22 AWG	Black	Solder Eyelets		Zinc	13	Screws with Captive Plate	300 VDC	2 Wall (Dual)	UL94 V-0	1	Steel	Barrier Block	15 A	Chassis, Panel	13
AMPHENOL ANYTEK YK3050213000G	Cover, Flange	Thermoplastic	0.3 in	7.62 mm	-40 °C	115 °C	14 AWG	22 AWG	Black	Solder Eyelets		Zinc	2	Screws with Captive Plate	300 VDC	2 Wall (Dual)	UL94 V-0	1	Steel	Barrier Block	15 A	Chassis, Panel	2
