AN26210A-PB
ObsoletePanasonic Industrial Automation Sales
IC AMP CELL 800MHZ/2GHZ 12LGA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AN26210A-PB |
|---|---|
| Current - Supply | 4.5 mA |
| Frequency | 800 MHz, 2 GHz |
| Gain | 17 dBi |
| Mounting Type | Surface Mount |
| Noise Figure | 1.55 dB |
| P1dB | -12 dBm |

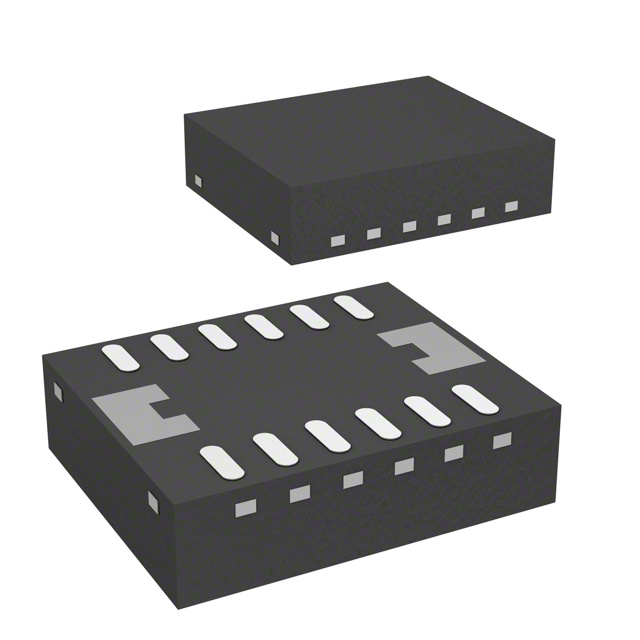

| Package / Case | 12-WFLGA |
| RF Type | Cellular, GPS, W-CDMA |
| Supplier Device Package | 12-LGA (3x3) |
| Test Frequency | 2.1 GHz |
| Voltage - Supply [Max] | 2.95 V |
| Voltage - Supply [Min] | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
AN262 Series
RF Amplifier IC Cellular, GPS, W-CDMA 800MHz, 2GHz 12-LGA (3x3)
