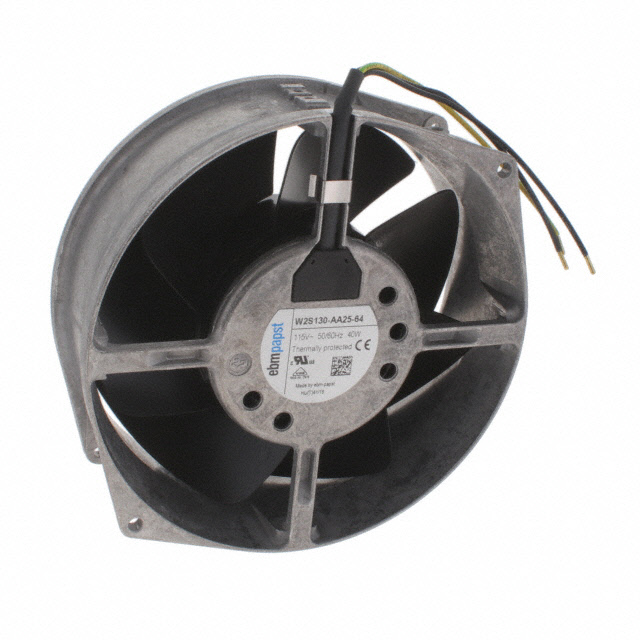

Specification	W2S130-AA25-64

Approval Agency	CSA, UL, CE, VDE
Bearing Type	Ball
Current Rating	0.47 A
Fan Type	Tubeaxial
Features	Thermal Overload Protector (TOP)
Ingress Protection	IP20
Material - Blade	Steel
Material - Frame	Aluminum
Operating Temperature (Max)	158 °F
Operating Temperature (Min)	-13 °F
Power (Watts)	40 W
RPM	3250 RPM
Size / Dimension Diameter	172 mm
Size / Dimension Shape	Round
Static Pressure	0.482 in H2O
Termination	3 Wire Leads with Splice Terminals
Termination Leads Count	3
Termination Type	Wire Leads with Splice Terminals
Voltage - Rated	115 V
Width	55 mm

W2S130 Series

Part	Current Rating	Material - Blade	Material - Frame	Fan Type	Voltage - Rated	Approval Agency	Size / Dimension Diameter	Size / Dimension Shape	Termination Leads Count	Termination Type	Termination	RPM	Width	Ingress Protection IP Rating	Ingress Protection Description	Bearing Type	Power (Watts)	Features	Air Flow	Weight	Operating Temperature (Min)	Operating Temperature (Max)	Noise	Termination Count	Static Pressure	Ingress Protection
ebm-papst Inc. W2S130-AB03-11	0.25 A	Steel	Aluminum	Tubeaxial	230 VAC	CE	172 mm	Round	2 leads	Wire Leads	2 Wire Leads	3250 RPM	55 mm	IP54	Dust Protected Water Resistant	Ball	39 W	Thermal Overload Protector (TOP)
ebm-papst Inc. W2S130-AA25-44		Steel	Aluminum	Tubeaxial	115 V	CE CSA UL VDE	150 mm	Round			2 Terminals		55 mm			Ball	38 W		223.6 CFM	2.4 lbs	-25 °C	60 °C	53 dB	2
ebm-papst Inc. W2S130-AA25-51		Steel	Aluminum	Tubeaxial	115 V	CE CSA UL	150 mm	Round			2 Terminals		55 mm			Ball	38 W		225 CFM	2.4 lbs			52 dB	2
ebm-papst Inc. W2S130-AA25-64	0.47 A	Steel	Aluminum	Tubeaxial	115 V	CE CSA UL VDE	172 mm	Round	3	Wire Leads with Splice Terminals	3 Wire Leads with Splice Terminals	3250 RPM	55 mm			Ball	40 W	Thermal Overload Protector (TOP)			-13 °F	158 °F			0.482 in H2O	IP20
ebm-papst Inc. W2S130-AB03-21	0.25 A	Steel	Aluminum	Tubeaxial	230 VAC	CE	172 mm	Round	2	Wire Leads with Splice Terminals	2 Wire Leads with Splice Terminals	3250 RPM	55 mm			Ball	39 W	Thermal Overload Protector (TOP)			-13 °F	176 °F				IP20
ebm-papst Inc. W2S130-AA25-65	0.47 A	Steel	Aluminum	Tubeaxial	115 V	CE CSA UL VDE	150 mm	Round			2 Terminals	3250 RPM	55 mm			Ball	40 W	Thermal Overload Protector (TOP)	223.6 CFM	2.4 lbs	-13 °F	194 °F	53 dB	2		IP20
ebm-papst Inc. W2S130-AB03-09																Ball
ebm-papst Inc. W2S130-AA03-44		Steel	Aluminum	Tubeaxial	230 VAC	CE CSA UL VDE	150 mm	Round			2 Terminals		55 mm			Ball	38 W		223.6 CFM	2.4 lbs	-40 °F	176 °F	53 dB	2
ebm-papst Inc. W2S130-AA25-97	0.47 A	Steel	Aluminum	Tubeaxial	115 V	CE CSA UL VDE	172 mm	Round	2	Wire Leads with Splice Terminals	2 Wire Leads with Splice Terminals	3250 RPM	55 mm			Ball	38 W	Thermal Overload Protector (TOP)			-13 °F	194 °F			0.482 in H2O	IP20
ebm-papst Inc. W2S130-AB03-19	0.25 A	Steel	Aluminum	Tubeaxial	230 VAC	CE	172 mm	Round	2	Wire Leads with Splice Terminals	2 Wire Leads with Splice Terminals	3250 RPM	55 mm			Ball	39 W	Thermal Overload Protector (TOP)			-25 °C	60 °C				IP44

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

W2S130-AA25-64 | Datasheet
