Q-0D04E0003060i

Active

Amphenol Custom Cable

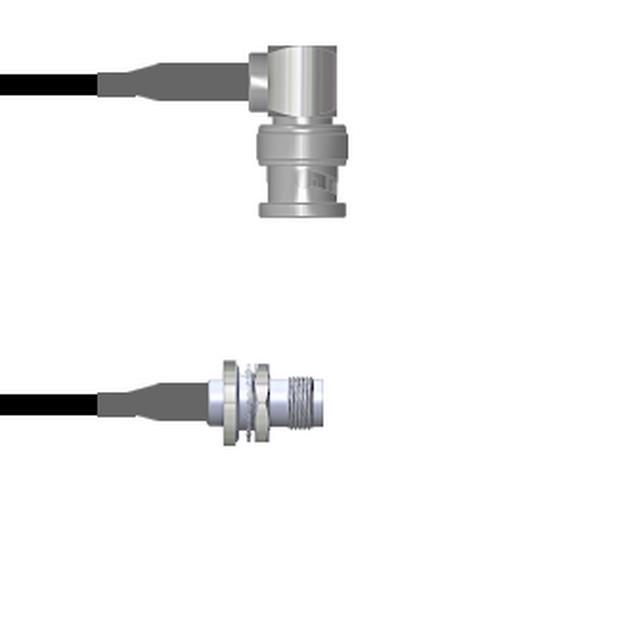

CBL ASSY BNC-TNC PLUG-JACK 5'

Deep-Dive with AI

Search across all available documentation for this part.

Q-0D04E0003060i

Active

Amphenol Custom Cable

CBL ASSY BNC-TNC PLUG-JACK 5'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0D04E0003060i

1st Connector	BNC Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	TNC Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	5 ft
Length	1.5 m
Length	5 '
Overall Impedance	50 Ohms
Style	BNC to TNC

Q-0D04E0 Series

Part	Features	Overall Impedance	Color	2nd Contact Gender	2nd Connector	Cable Type	Style	2nd Connector Mounting Type	Frequency - Max [Max]	1st Connector	1st Connector Mounting Type	2nd Connector Mounting Feature	1st Contact Gender	Length	Length	Length	Length [x]	Length [x]	Length [x]
Amphenol Custom Cable Q-0D04E0005024i	Shielded	50 Ohms	Copper	Female	TNC Jack	RG-316	BNC to TNC	Panel Mount	4 GHz	BNC Plug Right Angle	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Male	24 "	609.6 mm
Amphenol Custom Cable Q-0D04E0003060i	Shielded	50 Ohms	Black	Female	TNC Jack	RG-174	BNC to TNC	Panel Mount	4 GHz	BNC Plug Right Angle	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Male	5 '	1.5 m	5 ft
Amphenol Custom Cable Q-0D04E0003012i	Shielded	50 Ohms	Black	Female	TNC Jack	RG-174	BNC to TNC	Panel Mount	4 GHz	BNC Plug Right Angle	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Male	12 "	304.8 mm
Amphenol Custom Cable Q-0D04E0003.25M	Shielded	50 Ohms	Black	Female	TNC Jack	RG-174	BNC to TNC	Panel Mount	4 GHz	BNC Plug Right Angle	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Male				9.843 "	250 mm
Amphenol Custom Cable Q-0D04E0003018i	Shielded	50 Ohms	Black	Female	TNC Jack	RG-174	BNC to TNC	Panel Mount	4 GHz	BNC Plug Right Angle	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Male					457.2 mm	457.2 mm
Amphenol Custom Cable Q-0D04E0005003M	Shielded	50 Ohms	Copper	Female	TNC Jack	RG-316	BNC to TNC	Panel Mount	4 GHz	BNC Plug Right Angle	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Male	118.1 in	3 m	9.8 '
Amphenol Custom Cable Q-0D04E0005001M	Shielded	50 Ohms	Copper	Female	TNC Jack	RG-316	BNC to TNC	Panel Mount	4 GHz	BNC Plug Right Angle	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Male	39.4 in	1 m	3.3 ft
Amphenol Custom Cable Q-0D04E00030.5M	Shielded	50 Ohms	Black	Female	TNC Jack	RG-174	BNC to TNC	Panel Mount	4 GHz	BNC Plug Right Angle	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Male	19.69 "	50 cm
Amphenol Custom Cable Q-0D04E00052.5M	Shielded	50 Ohms	Copper	Female	TNC Jack	RG-316	BNC to TNC	Panel Mount	4 GHz	BNC Plug Right Angle	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Male	98.4 in	2.5 m	8.2 '
Amphenol Custom Cable Q-0D04E0003003i	Shielded	50 Ohms	Black	Female	TNC Jack	RG-174	BNC to TNC	Panel Mount	4 GHz	BNC Plug Right Angle	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Male	3 in	76.2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 71.95
		25	$ 70.56
		50	$ 69.16
		100	$ 67.77
		250	$ 66.38

Description

General part information

Q-0D04E0 Series

Cable Assembly Coaxial BNC to TNC RG-174 60.0" (1.5m) 5.0'

Documents

Technical documentation and resources

No documents available
