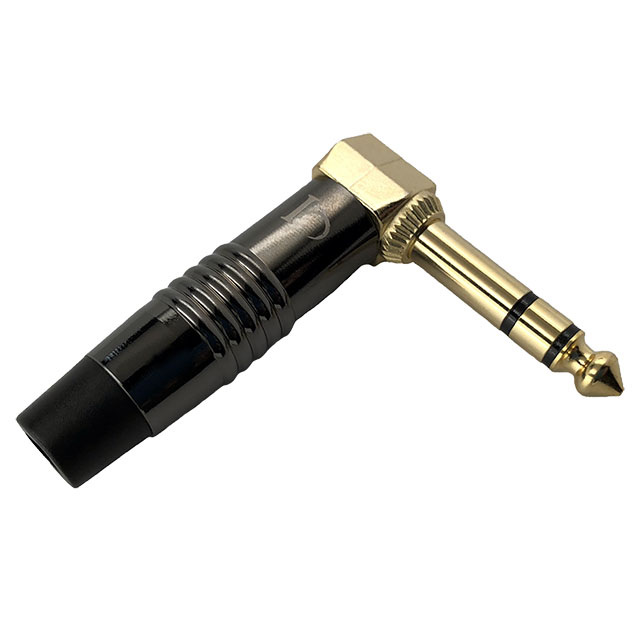

IO-T3MCH-R

Active

IO Audio Technologies

CONN CHR/GOLD 90 STEREO

Search across all available documentation for this part.

Active

IO Audio Technologies

CONN CHR/GOLD 90 STEREO

Technical Specifications

Parameters and characteristics for this part

Specification	IO-T3MCH-R

Actual Diameter [diameter]	0.25 in
Actual Diameter [diameter]	6.35 mm
Body Color	Gold, Black
Cable Opening [custom]	6.35 mm
Cable Opening [custom]	0.25 in
Connector Type	Phone Plug
Contact Material - Plating [custom]	Gold
Gender	Male
Includes	1 Connector, 1 Handle
Internal Switch(s)	False
Mating Length/Depth [z]	1.213 in
Mating Length/Depth [z]	30.8 mm
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Positions/Contacts [custom]	3
Number of Positions/Contacts [custom]	3
Shielding	Unshielded
Signal Lines	Stereo
Termination	Solder Eyelet(s)

CONN CHR/GOLD 90 STEREO

Part	Cable Opening [custom]	Cable Opening [custom]	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Includes	Termination	Connector Type	Internal Switch(s)	Mounting Type	Shielding	Contact Material - Plating [custom]	Signal Lines	Mating Length/Depth [z]	Mating Length/Depth [z]	Body Color	Actual Diameter [diameter]	Actual Diameter [diameter]	Gender
IO Audio Technologies IO-T3MCH-R	6.35 mm	0.25 in	3	3	1 Connector, 1 Handle	Solder Eyelet(s)	Phone Plug		Free Hanging (In-Line), Right Angle	Unshielded	Gold	Stereo	1.213 in	30.8 mm	Black, Gold	0.25 in	6.35 mm	Male

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6.35mm (0.250", 1/4") - Headphone Phone Plug Stereo (3 Conductor, TRS) Connector Solder Eyelet(s)
