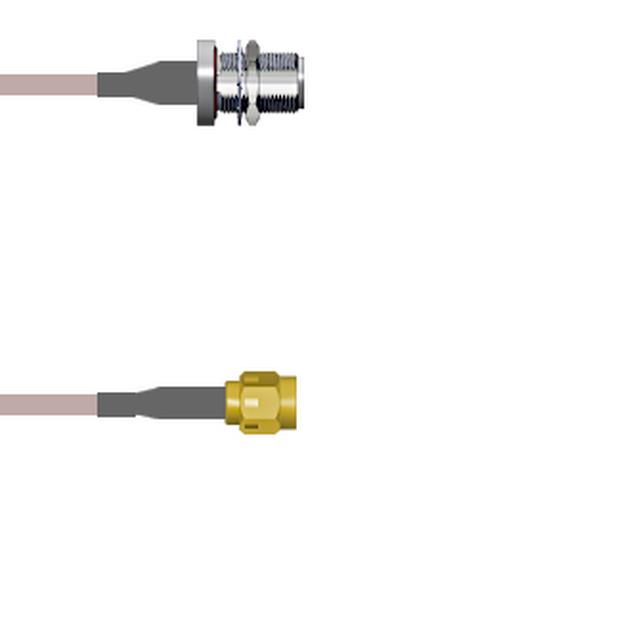

Q-1T03B0005.75M
ActiveAmphenol Custom Cable
COAX CBL SMA TO N-TYPE 29.5"
Deep-Dive with AI
Search across all available documentation for this part.
Q-1T03B0005.75M
ActiveAmphenol Custom Cable
COAX CBL SMA TO N-TYPE 29.5"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-1T03B0005.75M |
|---|---|
| 1st Connector | SMA Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | N-Type Jack |
| 2nd Connector Mounting Feature | Bulkhead - Front Side Nut |
| 2nd Connector Mounting Type | Panel Mount |
| 2nd Contact Gender | Female |
| Cable Type | RG-316 |
| Color | Copper |
| Features | Shielded |
| Frequency - Max [Max] | 11 GHz |
| Length | 29.53 " |
| Length | 750 mm |
| Overall Impedance | 50 Ohms |
| Style | SMA to N-Type |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 83.94 | |
| 25 | $ 82.31 | |||
| 50 | $ 80.67 | |||
| 100 | $ 79.04 | |||
| 250 | $ 77.41 | |||
Description
General part information
Q-1T03B0 Series
Cable Assembly Coaxial SMA to N-Type RG-316 29.53" (750.00mm)
Documents
Technical documentation and resources
No documents available
